SCHNEIDER ELECTRIC - SNRKSB50SF5 KS Abgangskasten, 50A, 3L+PEN, fur Siche
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Bemessungsstrom bei AC 50 Hz - 50 A
Polzahl - 3
Abgangsart - Kabel
Phasenselektion - nein
Bemessungsspannung bei AC 50 Hz - 230...690 V
Packung
1 ST
Produktserien
EAN
3606480006067
Artikelnummer
SNRKSB50SF5
Herstellernummer
KSB50SF5
Hersteller
SNR
Bemessungsstrom bei AC 50 Hz:
50 A
Polzahl:
3
Abgangsart:
Kabel
Phasenselektion:
nein
Bemessungsspannung bei AC 50 Hz:
230...690 V
Anzahl der Leiter (ohne Erde):
3
Ausführung der Steckdosen:
sonstige
Schutzart (IP):
IP55
Farbe:
weiß
RAL-Nummer:
9001

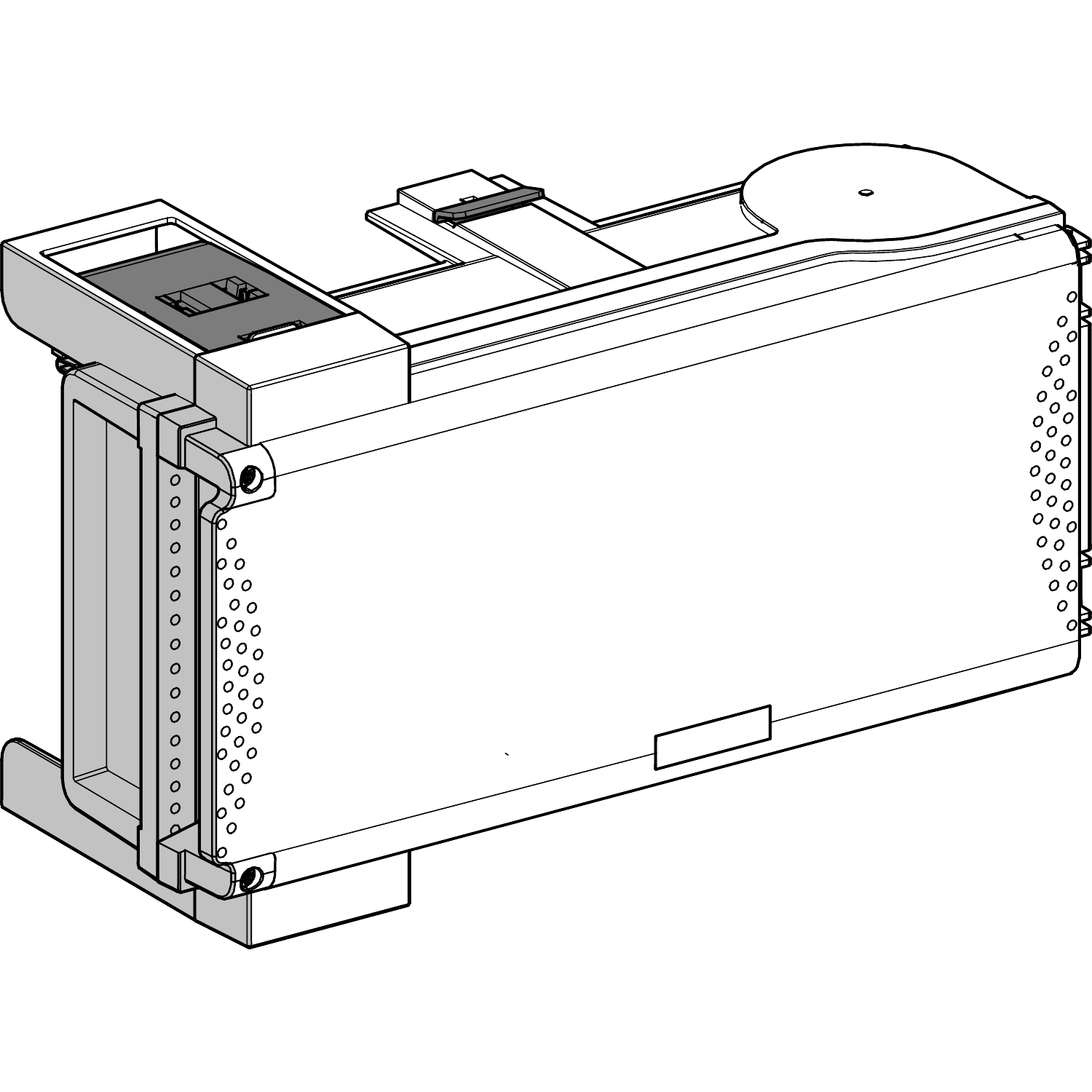

Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 50A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+PEN. It provided protection for size 14 x 51 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
