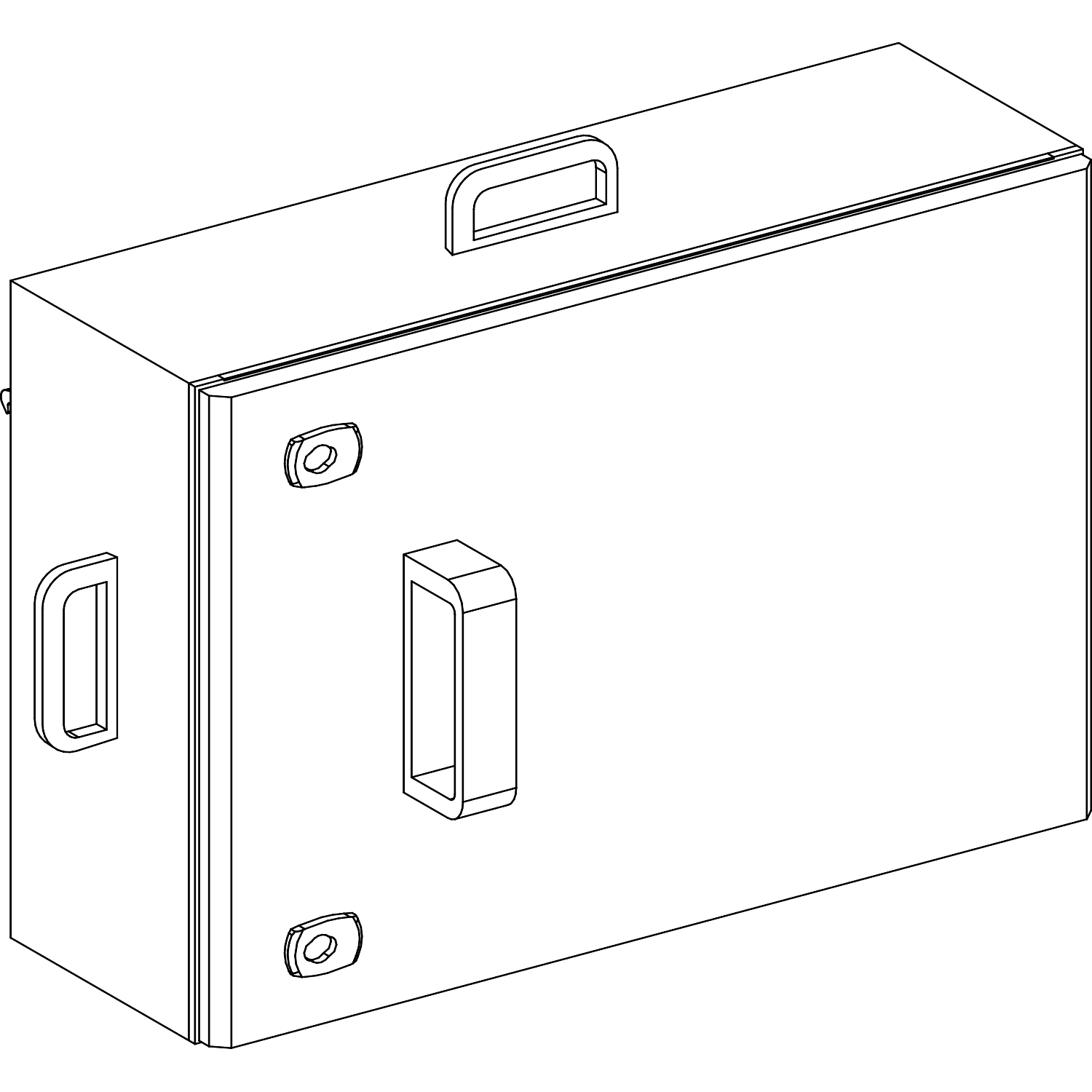

SCHNEIDER ELECTRIC - SNRKSB250SE4 KS Abgangskasten,250A, 3L+N+PE, fur Sich
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Sicherung - Schraubsicherung
Bemessungsstrom - 250 A
Werkstoff des Gehäuses - Kunststoff
Schutzart (IP) - IP55
Breite - 600 mm
Packung
1 ST
Produktserien
EAN
3606480005770
Artikelnummer
SNRKSB250SE4
Herstellernummer
KSB250SE4
Hersteller
SNR
Sicherung:
Schraubsicherung
Bemessungsstrom:
250 A
Werkstoff des Gehäuses:
Kunststoff
Schutzart (IP):
IP55
Breite:
600 mm
Höhe:
400 mm
Mit transparentem Deckel:
nein
Platzierung auf Schienensystem:
universal
Tiefe:
308 mm
Anbaumöglichkeit:
ja
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 250A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for size 1 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
