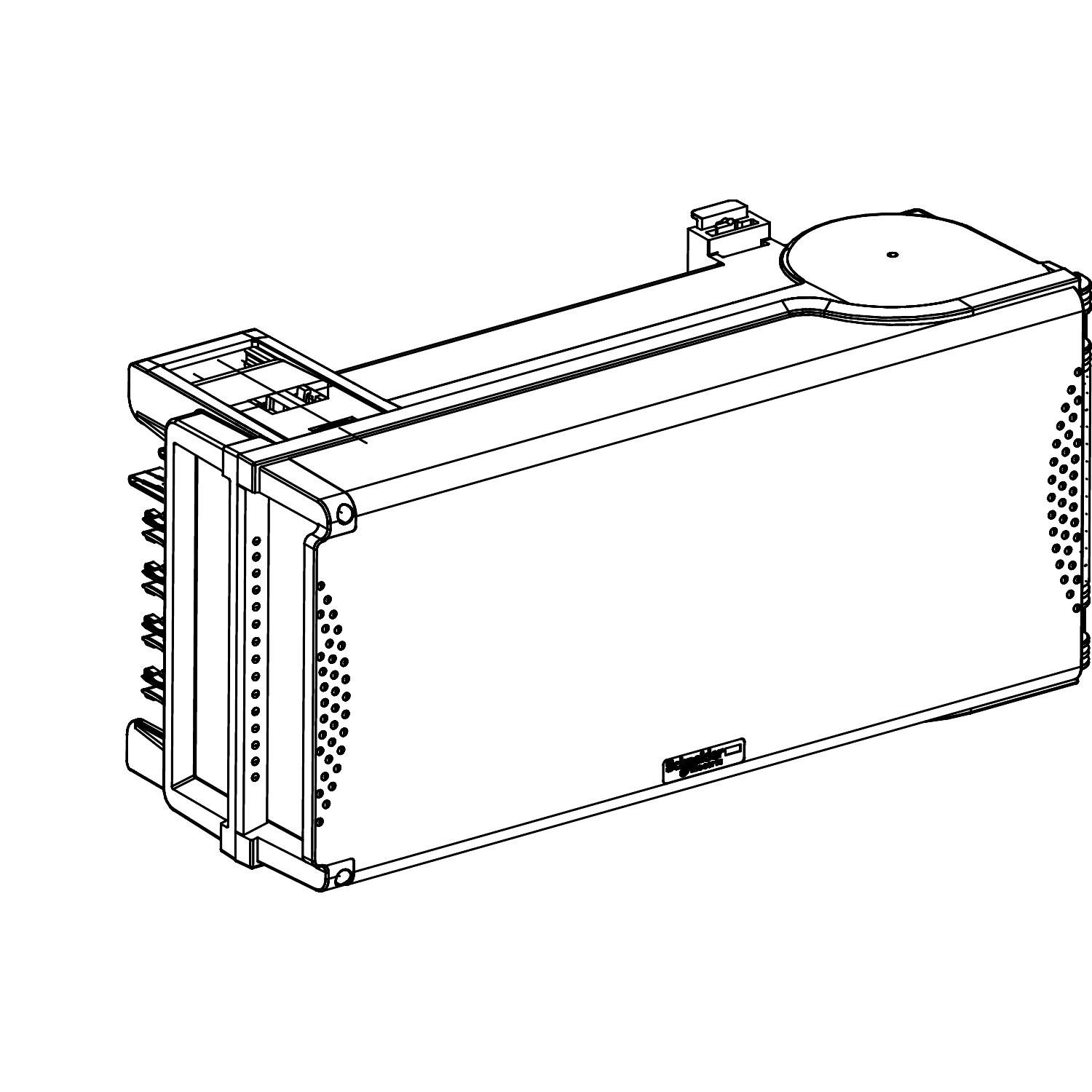

SCHNEIDER ELECTRIC - SNRKSB100SF4 KS Abgangskasten,100A, 3L+N+PE, fur Sich
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Sicherung - Schraubsicherung
Bemessungsstrom - 100 A
Werkstoff des Gehäuses - Kunststoff
Schutzart (IP) - IP55
Breite - 444 mm
Packung
1 ST
Produktserien
EAN
3606480005855
Artikelnummer
SNRKSB100SF4
Herstellernummer
KSB100SF4
Hersteller
SNR
Sicherung:
Schraubsicherung
Bemessungsstrom:
100 A
Werkstoff des Gehäuses:
Kunststoff
Schutzart (IP):
IP55
Breite:
444 mm
Höhe:
202 mm
Mit transparentem Deckel:
nein
Platzierung auf Schienensystem:
universal
Tiefe:
178 mm
Anbaumöglichkeit:
ja
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 100A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for size NF fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
