EXCEL - EXL190-206 Excel Cat6A Cable F/FTP LSOH B2ca 2x 500 - 190-206

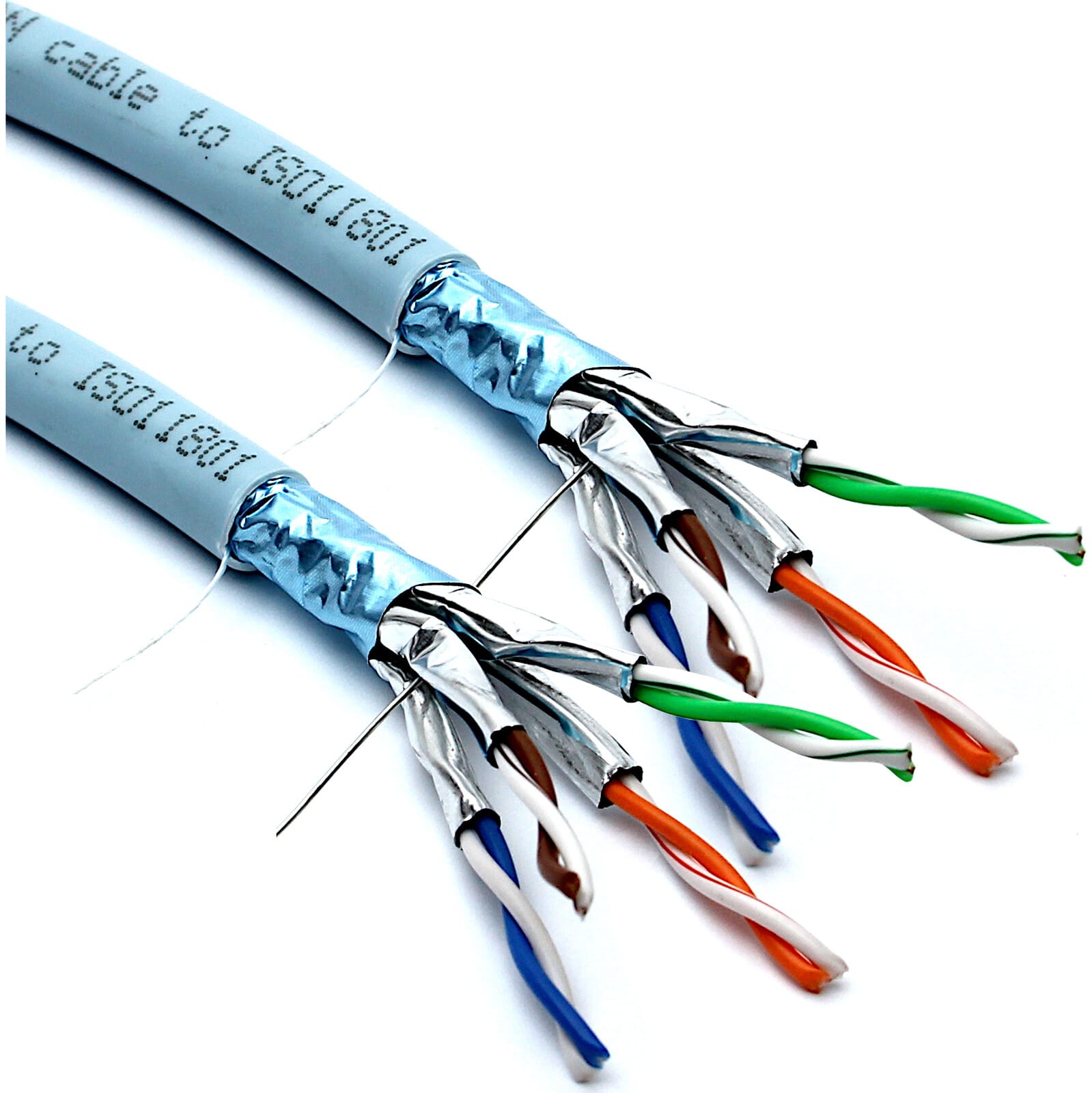

Excel Dual Cat6A cable individually screened full F/FTP LSOH CPR Euroclass B2ca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500 m reels. Excel Cat6A fully screened (F/FTP) Cable takes the performance capabilities of copper infrastructure to new levels. This delivers Class EA/Augmented Category 6 link performance over distances of up 90 m which supports the applications including 10GBASE-T, 10 Gigabit Ethernet. Each cable consists of four pairs which are individually wrapped with a high quality, strong, aluminium/polyester foil tape providing screening for each pair. This is a dual cable providing two sets of conductors. The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another overall foil. - Cat6A solid copper cable - F/FTP overall screening and foil screen per pair - Supports PoE++ Type 4 (90 W) - Outer sheath colour: Aqua - Reaction-to-fire class according to EN 13501-6: B2ca - Smoke development class according to EN 13501-6: s1a
