SIEMENS - SIE6GK57954MA000AA3 IWLAN ANTENNA ANT795-4MA - 6GK57954MA000AA3

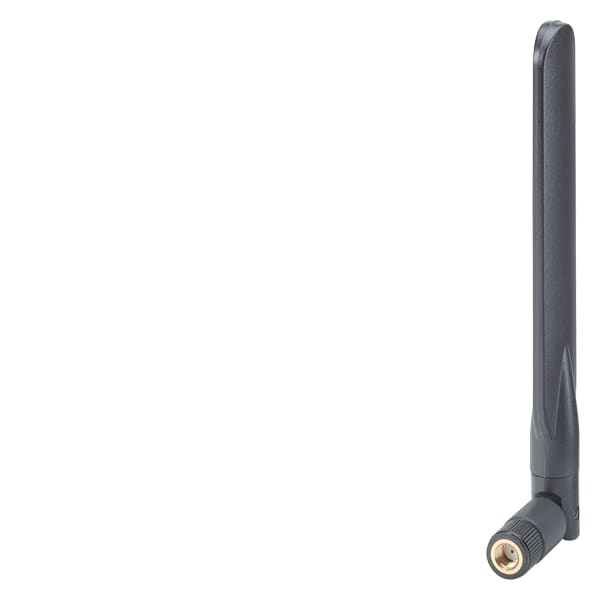

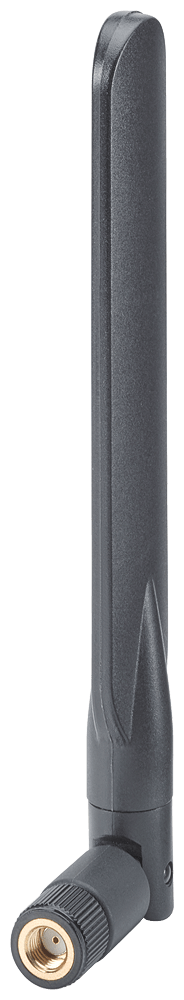

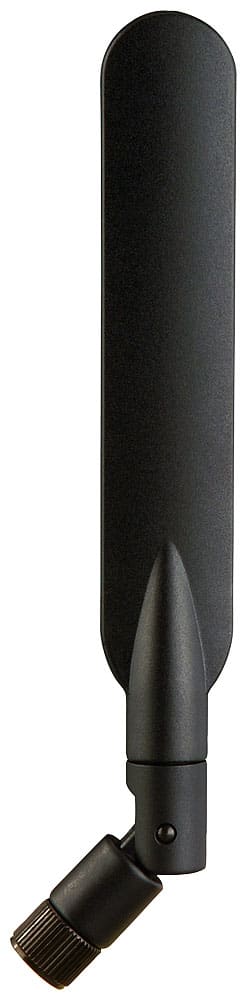

Antenna ANT795-4MA

Antennas used for Industrial Wireless LAN (IWLAN) and WLAN according to IEEE 802.11 at 2.4 GHz and 5 GHz with a data rate of up to 450 Mbit/s for optimizing sending and receiving conditions.

Dettagli tecnici:

• Type: Antenna ANT795-4MA
• Feature: Omnidirectional and radially adjustable with additional articulation
• Connector: RSMA
• Gain: 3/5 dBi
• Protection class: IP30
• Temperature range: -20 to +60 °C
• Frequency: 2.4/5 GHz
• Wi-Fi Compliance: Compliance with national certifications
• Mounting: Direct mounting on SCALANCE W with RSMA connection technique
• Supply package: 1x ANT795-4MA, compact instructions in German/English

Vantaggi per i clienti:

• Reliable data exchange with vehicles in automated transport systems due to effective installation.
• Complete coverage of a production cell or robotic station.
• Improved connection quality due to concentration of the radio field around the antenna.
• Investment protection through compliance with globally recognized standard IEEE 802.11.
• Cost-effective connection to equipment located in hard-to-access or aggressive environments.
