SCHNEIDER ELECTRIC - SNRLVSXU313 PRISMASET XS CENTRALINODATI INCASSO 3X13 - LVSXU313

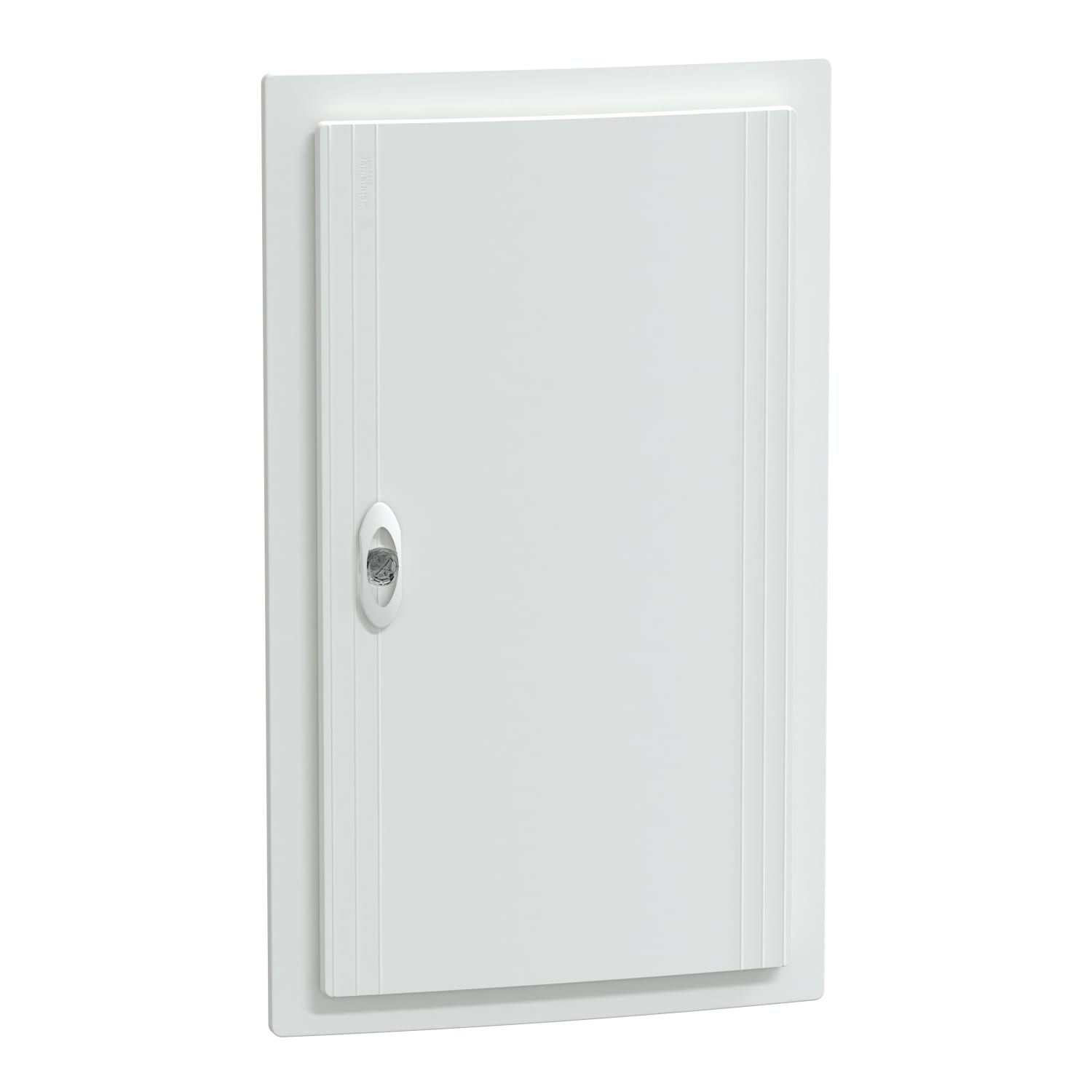

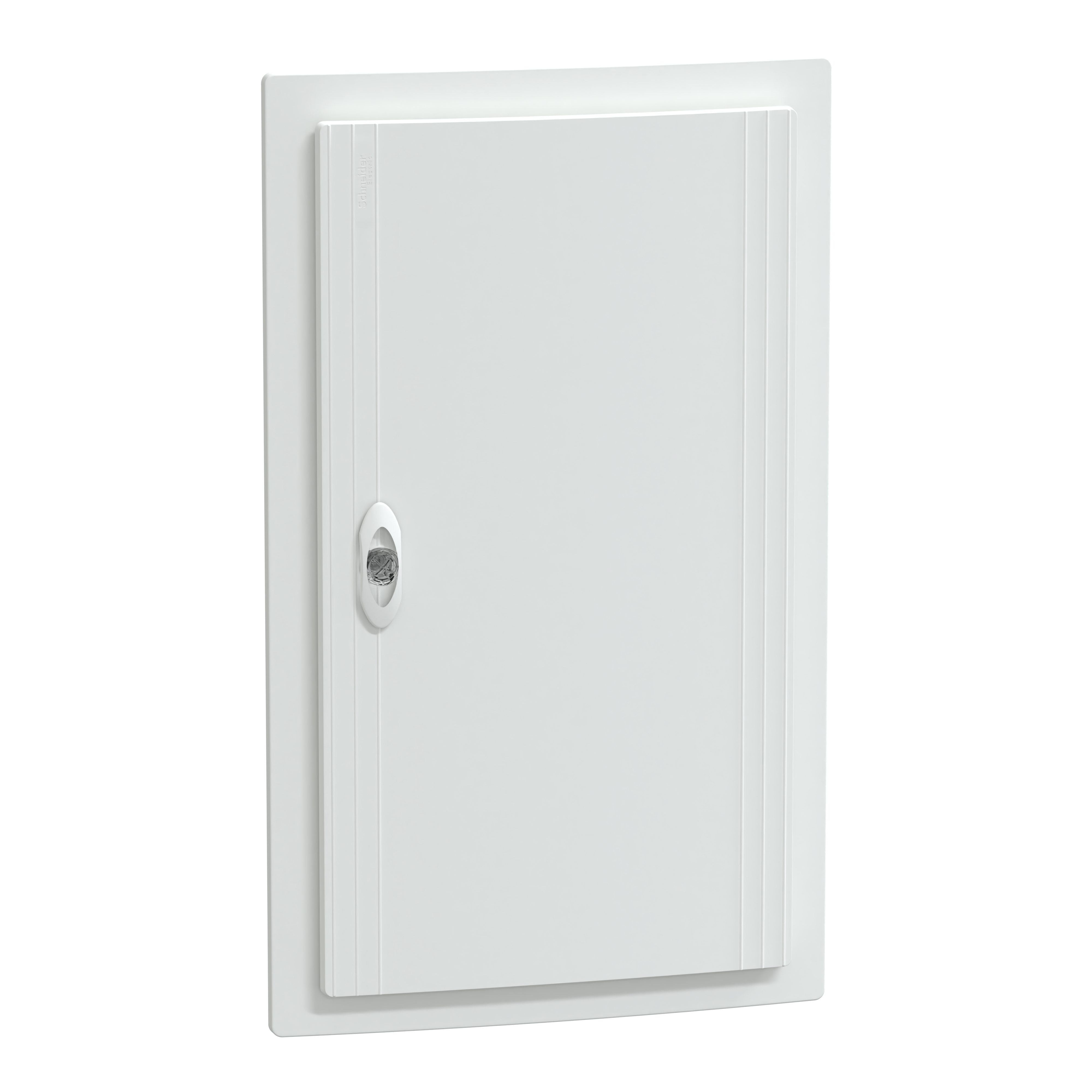

This PrismaSeT XS enclosure is a flush mounted versatile enclosure. This plastic enclosure is composed of 1 row of 13 modules of 18mm and a perforated mounting plate. It can accomodate all types of modular or non-modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40 closed door. It is provided with a plain door. The colour of the enclosure, the front plate and the door is white (RAL 9003). This ready-to-use enclosure is intended in residental and tertiary sectors. It is devised for electricians, providing ergonomics and flexibility of installation. The cables can enter via the top or bottom of the enclosure by removable cable entry plates. It enables entry by cable or tube. It is equipped with 1 back plate, 1 universal grid and 1 DIN rail. The grid is compliant with LexCom Home range offering an easy and quick installation of 2 others DIN rails or others components like ADSL box. It has no terminal block. It is provided with 1 identification label, 1 label protector, 1 blanking plate strip and some cable fixing hardware. The electrical insulation class is class II. The Ui rated insulation voltage is 400V. The overvoltage category is II. The In rated current is up to 125A. The dissipated power is 71W. It complies with IEC 60670-1 and 24, IEC 61439-1 and 3 standards. The total dimensions are (W) 351mm x (H) 660mm x (D) 129mm. The product weight is 4.410kg. The enclosure and the front plate are made of technoplastic. The back part and the door are made of technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the enclosure, 850°C for the back plate and 650°C for the door. The IK degree of protection is IK09 with closed door. The operating temperature are -25°C to 60°C.
