SCHNEIDER ELECTRIC - SNRLVSXDP318 PRISMASET XS RICAMBIO PORTA BIANCA 3X18
Accedi per visualizzare prezzi e disponibilità
Caratteristiche principali
Modello - Porta per scomparto
Materiale - Plastica
Colore - Bianco
Porta a vetri - no
Grado di protezione (IP) - IP40
Confezione
1 PZ
EAN
3606481099945
Codice prodotto
SNRLVSXDP318
Cod. produttore
LVSXDP318
Produttore
SNR
Modello:
Porta per scomparto
Materiale:
Plastica
Colore:
Bianco
Porta a vetri:
no
Grado di protezione (IP):
IP40
Larghezza:
426 mm
Altezza:
600 mm
Predisposta per sezionatore di intrerblocco:
no
Profondità:
20 mm
Versione EMC (compatibilità elettromagentica):
no

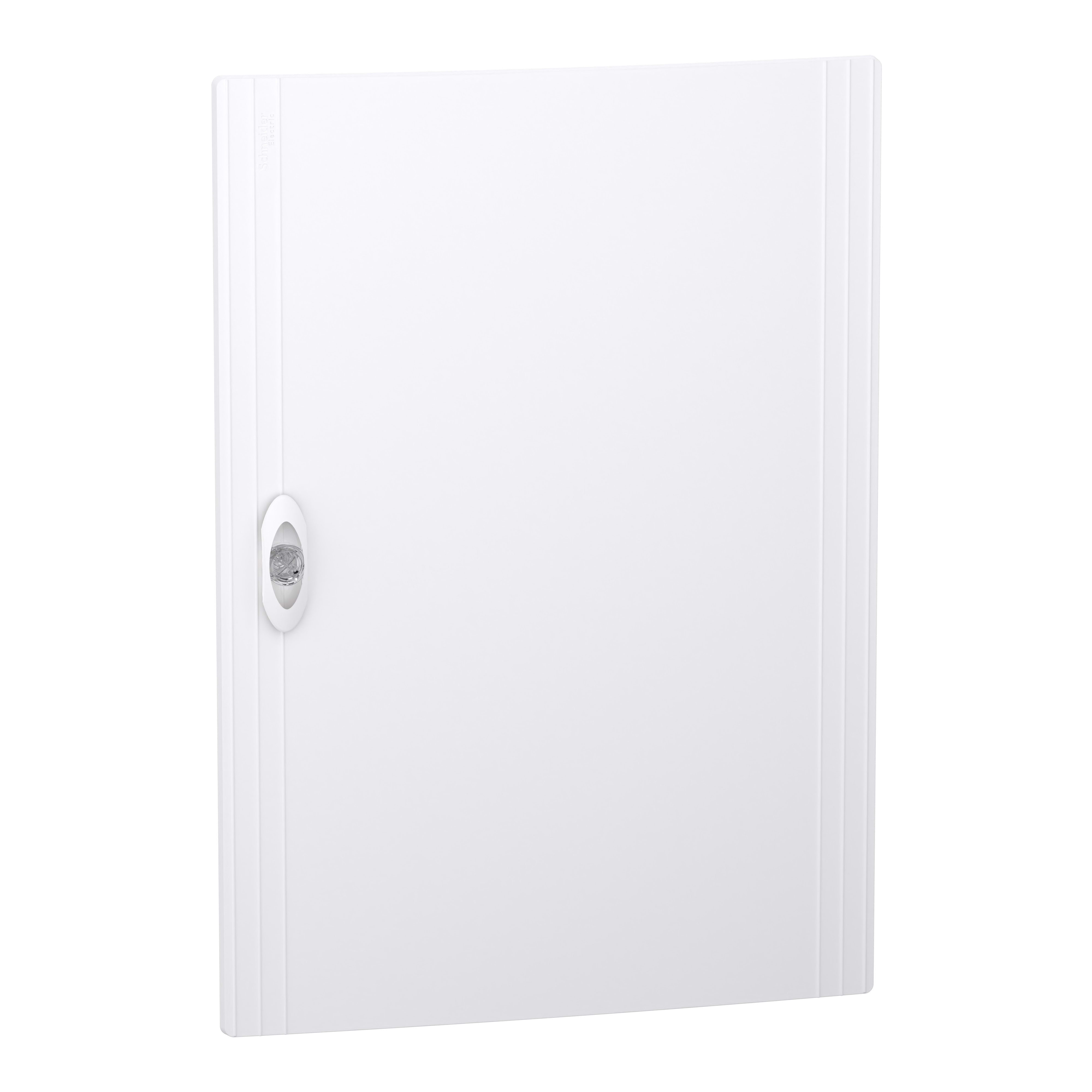

This PrismaSeT XS door is a plain door. It is designed to be compliant with an enclosure with 3 rows of 18 modules of 18mm. The IP degree of protection is IP40. The door is made of technoplastic. Its color is white (RAL 9003). The door is intented in residential or tertiary sectors. The door can be installed on flush or surface enclosure. it can be mounted and opened on the right or the left side of the enclosure. The total dimensions are (W) 426mm x (H) 600mm x (D) 20mm. The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.
