GEFRAN SPA - GEFF070714 GIBFO085000HC10 0000X10

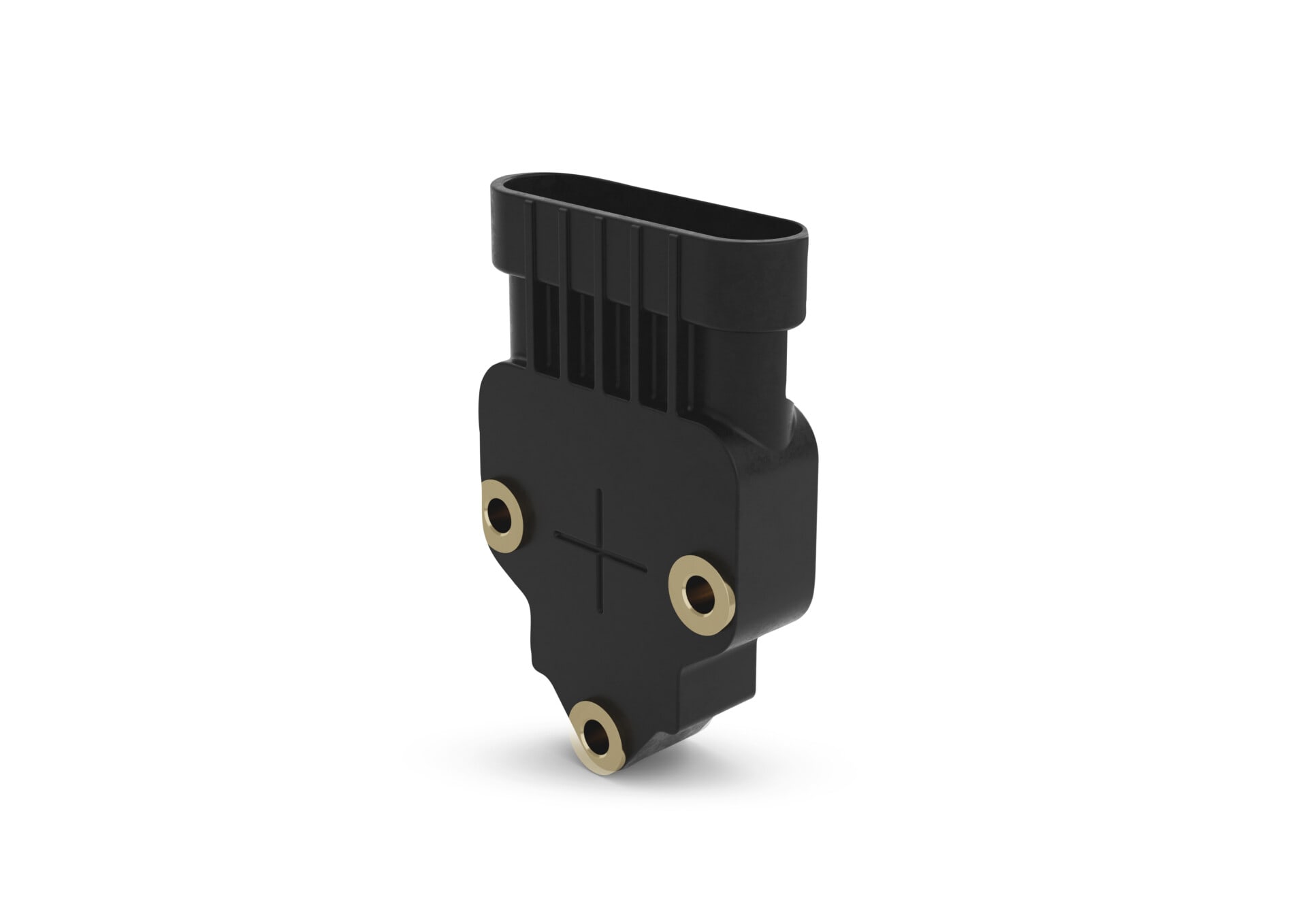

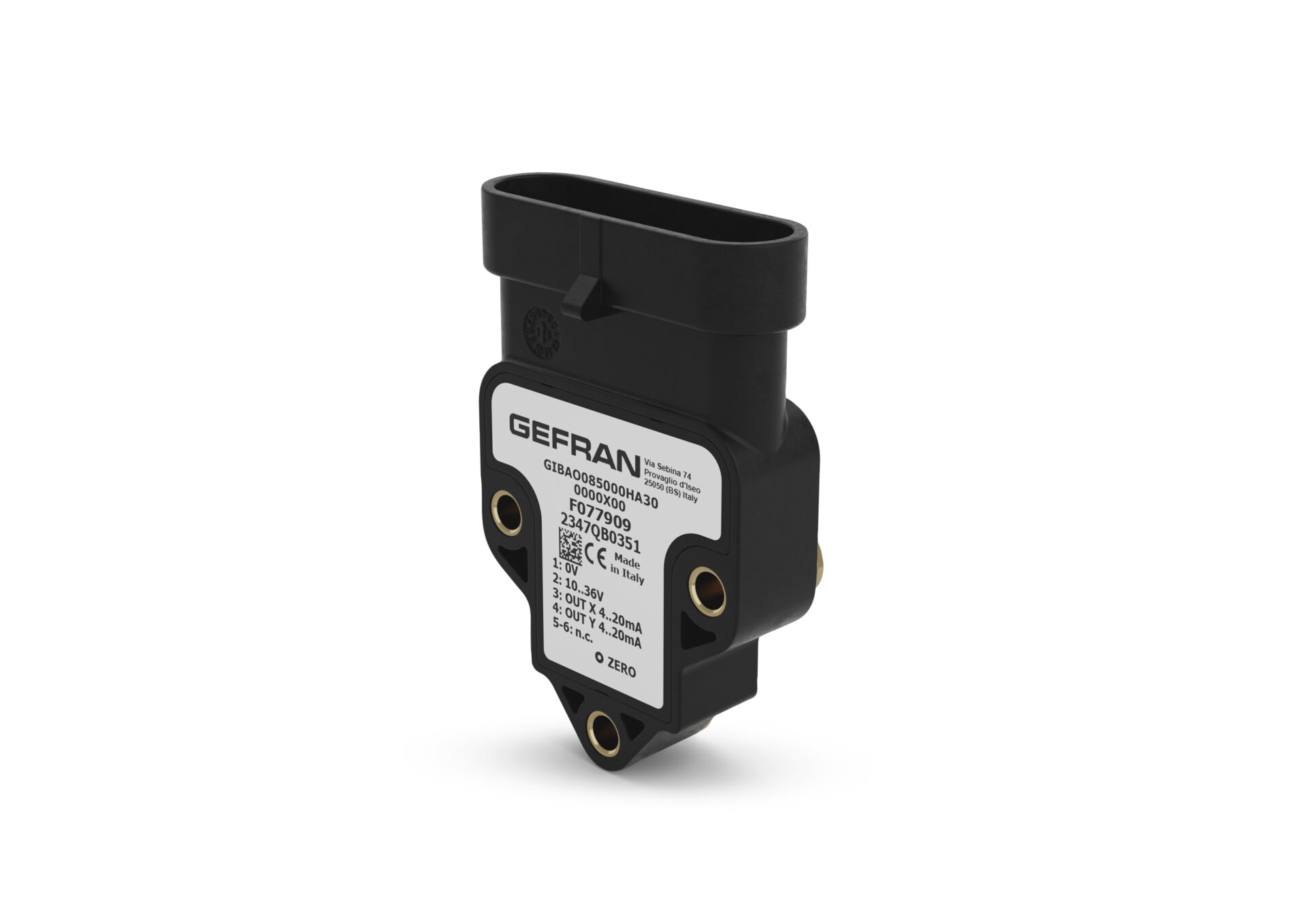

Sensori di posizione | GIB | Inclinometro entry level singolo/doppio asse (XY/360?) | Caratteristiche Principali: Measurement range: ?10? ?15? ?20? ?30? ?45? ?60? ?85? (dual axis XY) 360? (?180?) (single axis Z) Supply voltage: +5Vdc (only for 0.5..4.5Vdc output); +10?+36Vdc (see output signal for right supply voltage) Output signal: 0.5…4.5V RATIOMETRIC (supply +5Vdc); 0.5…4.5V; 0…10V; 4…20mA; CANopen Electrical connections: AMP Superseal 6P 282108-1; 6 wires output 18 AWG 1.65mm OD (cable+connector on request) Resolution: 0.05? (?10? to ?20?); 0.05?(?30?); 0.1?(?45?); 0.1?(?60?); 0.1?(?85?); 0.1? (?180?) analog output; 0.05? CANopen output Linearity: < ? 0,5% FS (?10? to ?60?; ?180?); < ? 0.5% FS (?85?) Working and coefficient temperature: -40?C … +85?C thermal drift < 0.01?/?C in the range (T=-10?C..+60?C) Vibrations: 20g tra 10 Hz ? 2000 Hz IEC 60068-2-6 Shock: Impulsive on 3 axes; 50g 11 ms IEC 60068-2-27 Electromagnetic compatibility: 2014/30/EU Electromagnetic Compatibility (EMC) IP protection level: IP67 – IPX9K with female mating connector mounted AMP282090-1 (GIB-A version) and IP68 (GIB-F version) Housing material: PBT | Panoramica: Inclinometro ENTRY LEVEL tecnologia MEMS. Ingombri ridotti, alte prestazioni, facile installazione; alto grado IP, resistenza a shock e vibrazioni ed elevata compatibilita elettromagnetica rendono il sensore adatto alle applicazioni dell?idraulica mobile. Sviluppato per assicurare una soluzione robusta e performante per applicazioni come mezzi agricoli, macchine movimento terra e mezzi di sollevamento.
