ABB SPA - ABB2CKA006710A0038 62851 U-WL-500 DIMMER - 2CKA006710A0038

ABB SPA
copiacopia

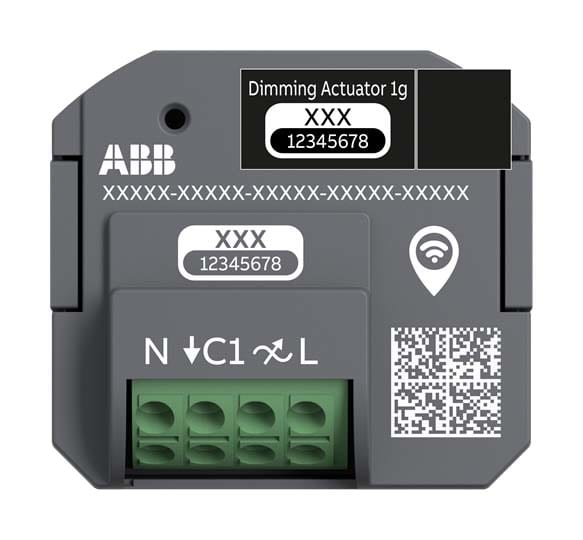

ABB SPA - ABB2CKA006710A0038 62851 U-WL-500 DIMMER

Accedi per visualizzare prezzi e disponibilità

Caratteristiche principali

  • Sistema bus EIB/KNX - no

  • Sistema bus radio KNX - no

  • Sistema bus radio - no

  • Sistema bus LON - no

  • Sistema bus Powernet - no

Confezione

  • 10 PZ

EAN

4011395346396

Codice prodotto

ABB2CKA006710A0038

Cod. produttore

2CKA006710A0038

Produttore

ABB

Sistema bus EIB/KNX:

no

Sistema bus radio KNX:

no

Sistema bus radio:

no

Sistema bus LON:

no

Sistema bus Powernet:

no

Altri sistemi bus:

Altro

Tipo di montaggio:

Incassato

Accoppiamento bus incluso:

Modulo bus rimovibile:

no

Con indicatore a LED:

Numero di uscite:

1

Tipo di carico:

Universale e LED retrofit

Max. commutazione del LED di alimentazione:

180 W

Frequenza:

50...50 Hz

Grado di protezione (IP):

IP20

Min. profondità della presa per apparecchi:

23 mm

Flush mounted actuator wireless for switching and dimming of lighting systems. Operation in ABB-flexTronics? wireless (device control) or networking of up to 32 devices (room con-trol). Integration in ABB-free@home? wireless with System Access Point upto 150 devices. 2-wire connection (neutral conductor not required). Neutral conductor optionally connectable (recommended for the connection of low loads < 3 W/VA). With plug clamps. With extension input. Operation also possible via conventional pushbuttons. Remote operation via Bluetooth and smartphone/tablet app. Programming via Bluetooth with the ABB-free@home? Next App or the web interface of the System Access Point. Optimised for dimming of retrofit LED lamps (LEDi). For dimmable Retrofit-LEDs (LEDi). For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers. For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps. Mix operaton of LEDi with conventional loads possible. With manually adjustable operating mode: trailing / leading edge control. With adjustable minimum brightness. Low-noise level by MOSFET transistors. With electronic short-circuit protection. With electronic overload protection.
