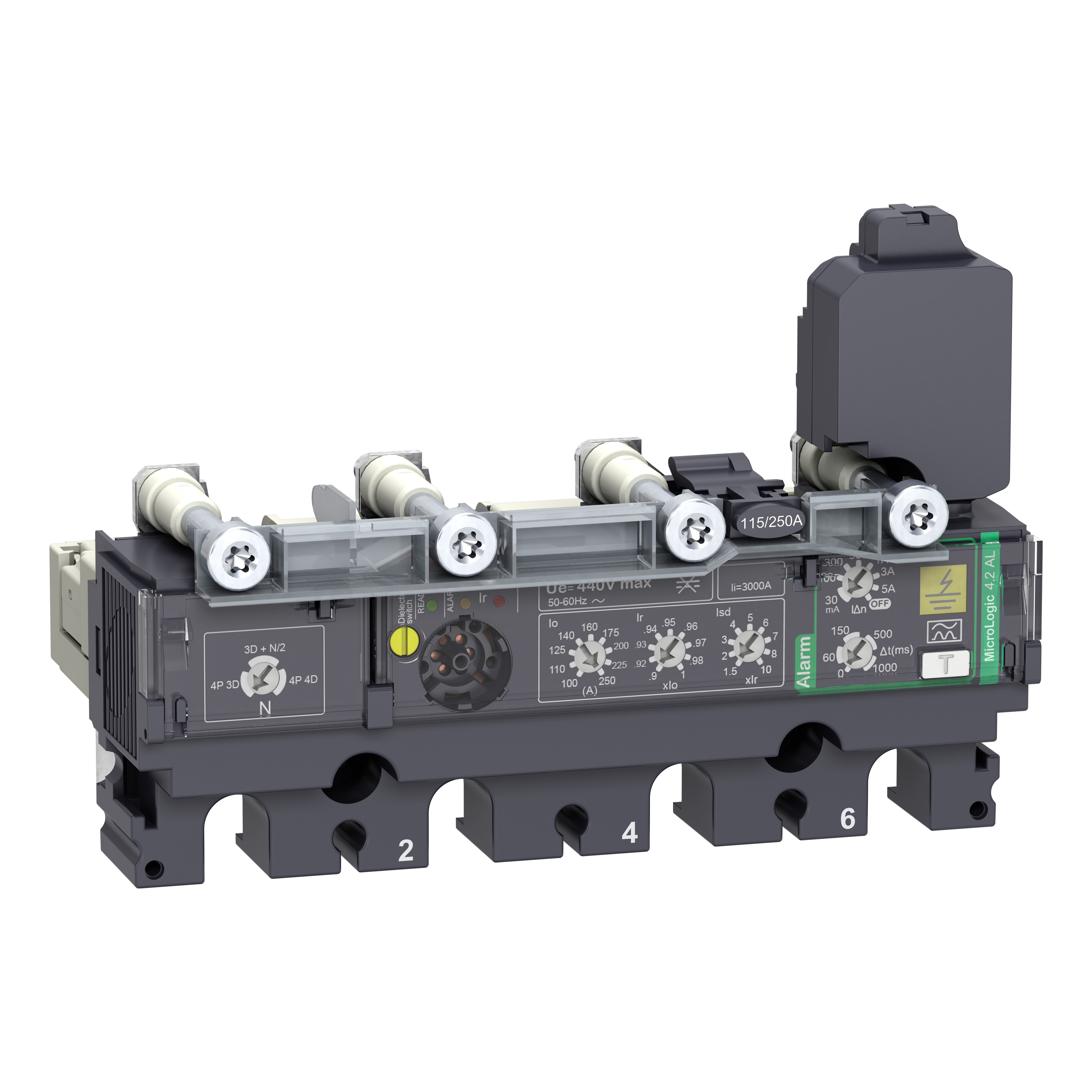

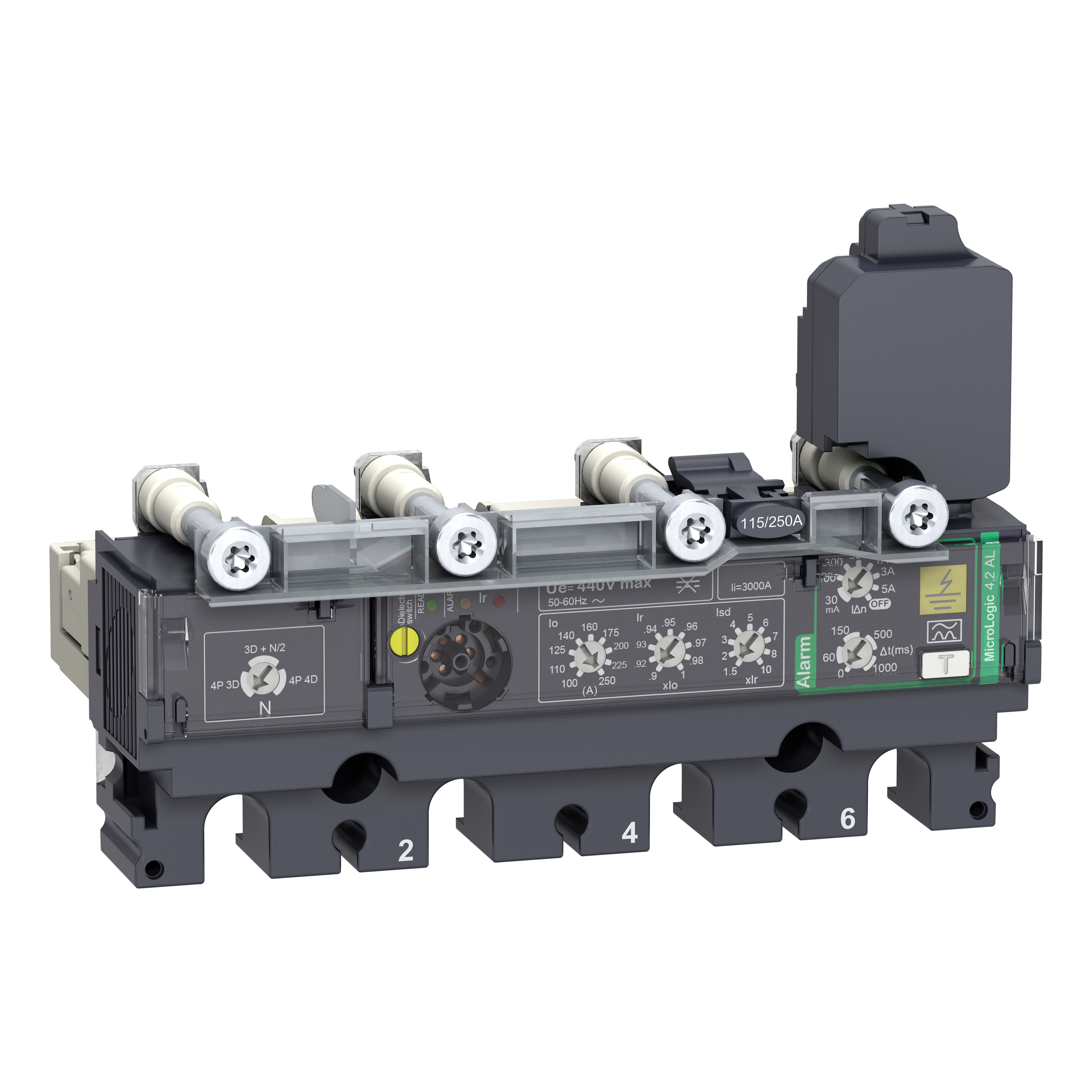

SCHNEIDER ELECTRIC - SNRC1644A160 MLOGIC 4.2 AL 160A 4P NSX160/250_T - C1644A160

This MicroLogic 4.2 AL is a 4 poles 4d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 AL provides an earth leakage alarm without trip, that is available on the terminal block. MicroLogic 4.2 AL indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
