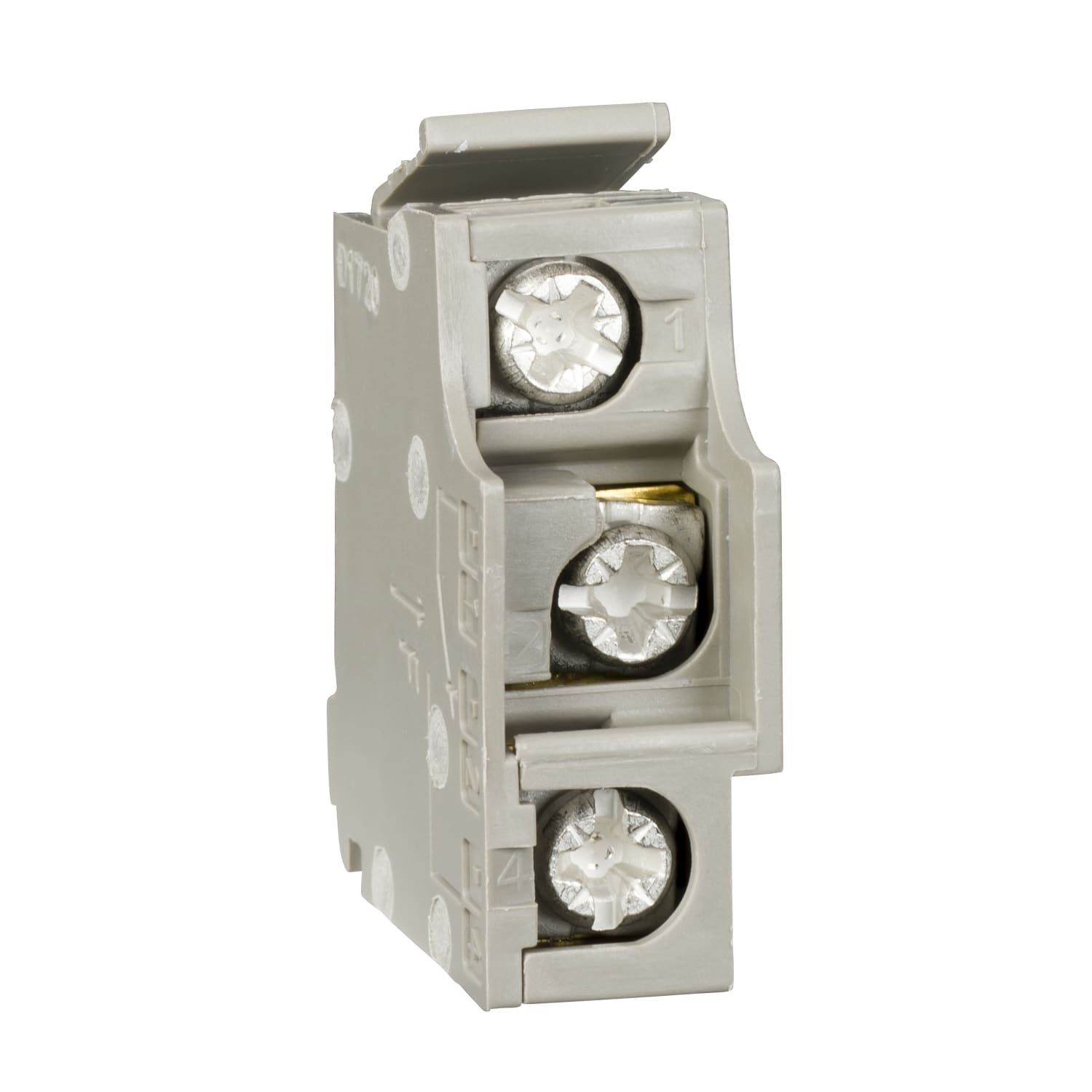

SCHNEIDER ELECTRIC - SNR29452 Hilfsschalter mit 1 Kontakt, Ith 5A (380
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Anzahl der Kontakte als Wechsler - 1
Anzahl der Kontakte als Schließer - 0
Anzahl der Kontakte als Öffner - 0
Anzahl der Fehlersignalschalter - 1
Bemessungsbetriebsstrom Ie bei AC-15, 230 V - 4 A
Packung
1 ST
EAN
3303430294528
Artikelnummer
SNR29452
Herstellernummer
29452
Hersteller
SNR
Anzahl der Kontakte als Wechsler
1
Anzahl der Kontakte als Schließer
0
Anzahl der Kontakte als Öffner
0
Anzahl der Fehlersignalschalter
1
Bemessungsbetriebsstrom Ie bei AC-15, 230 V
4 A
Ausführung des elektrischen Anschlusses
Schraubanschluss
Ausführung
integrierbar
Montageart
sonstige
Fassung
ohne
It is a single low-level auxiliary contact that provides all the different indications remotely for Compact NSX, Compact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 1MA at 4 VDC for utilization categories AC12/AC15/DC12/DC14. One device embeds 5 auxiliaries contact type. It complies with IEC 60947-5-1 standard.
