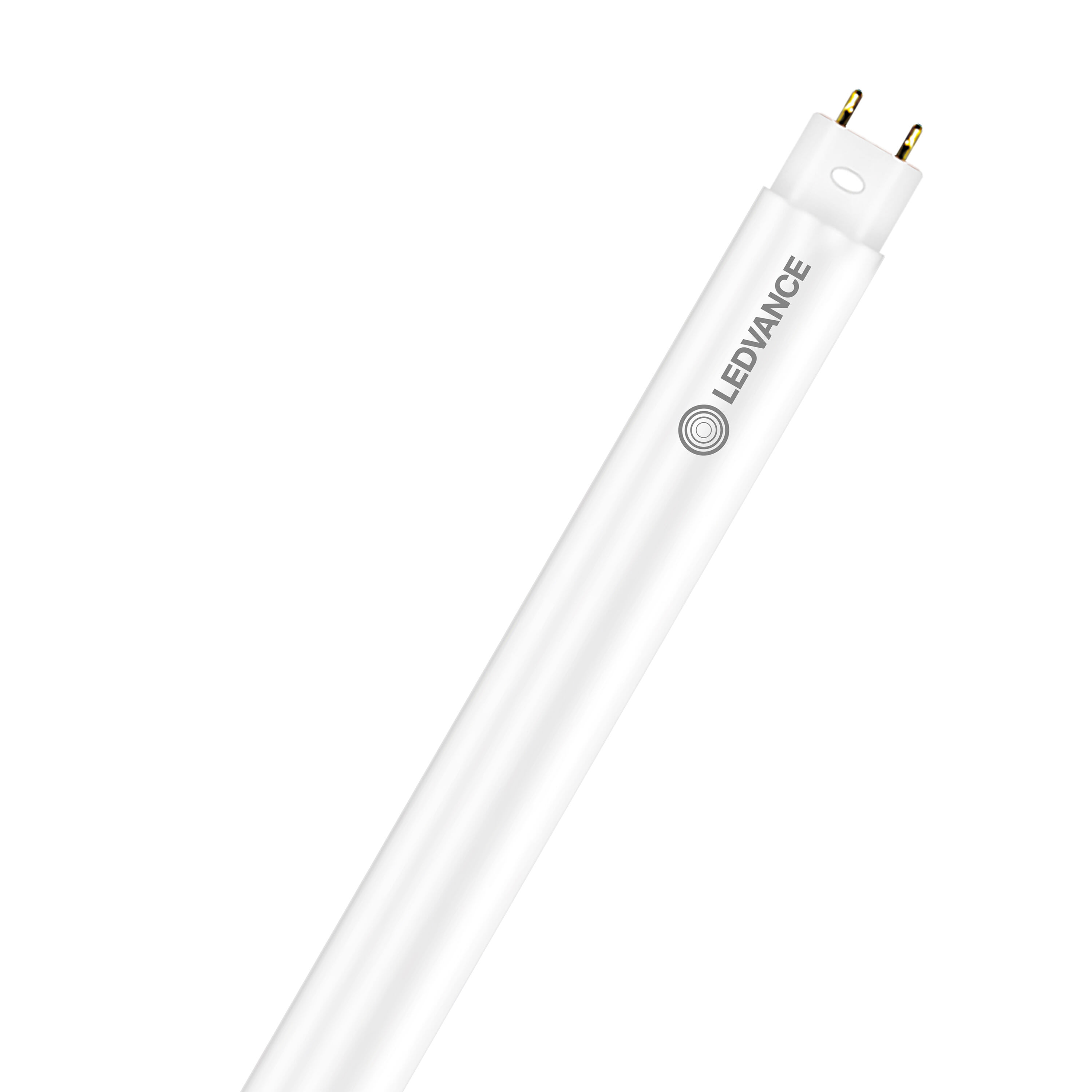

LEDVANCE - LDVPT8EMCON188301 LEDTUBE T8 EM CON P 600 7,5W 830 LEDV - PT8EMCON188301

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Nennspannung - 220...240 V

  • Nennstrom - 38...38 mA

  • Leistungsfaktor - 0.9

  • Lampenleistung - 7.5...7.5 W

  • Spannungsart - AC

Packung

  • 10 ST

Grüne Produktbewertung

Grüne Bewertung

Produktserien

LED TUBE T8 EM CONNECTED

EAN

4099854144431

Artikelnummer

LDVPT8EMCON188301

Herstellernummer

PT8EMCON188301

Hersteller

LDV

Nennspannung:

220...240 V

Nennstrom:

38...38 mA

Leistungsfaktor:

0.9

Lampenleistung:

7.5...7.5 W

Spannungsart:

AC

Geeignet für EVG:

nein

Geeignet für magnetisches Vorschaltgerät:

ja

Lichtstrom:

1000...1000 lm

Bemessungslichtstrom nach IEC 62612:

1000 lm

Lampenlichtausbeute:

133 lm/W

Farbwiedergabeindex CRI:

80-89

Lampenform:

Röhre, zweiseitig gesockelt

Filamentlampe:

nein

Ausführung Glas/Abdeckung:

mattiert

Lichtfarbe nach EN 12464-1:

warmweiß < 3300 K

Sockel:

G13

Farbe:

weiß

Farbtemperatur:

3000...3000 K

Gehäusefarbe:

weiß

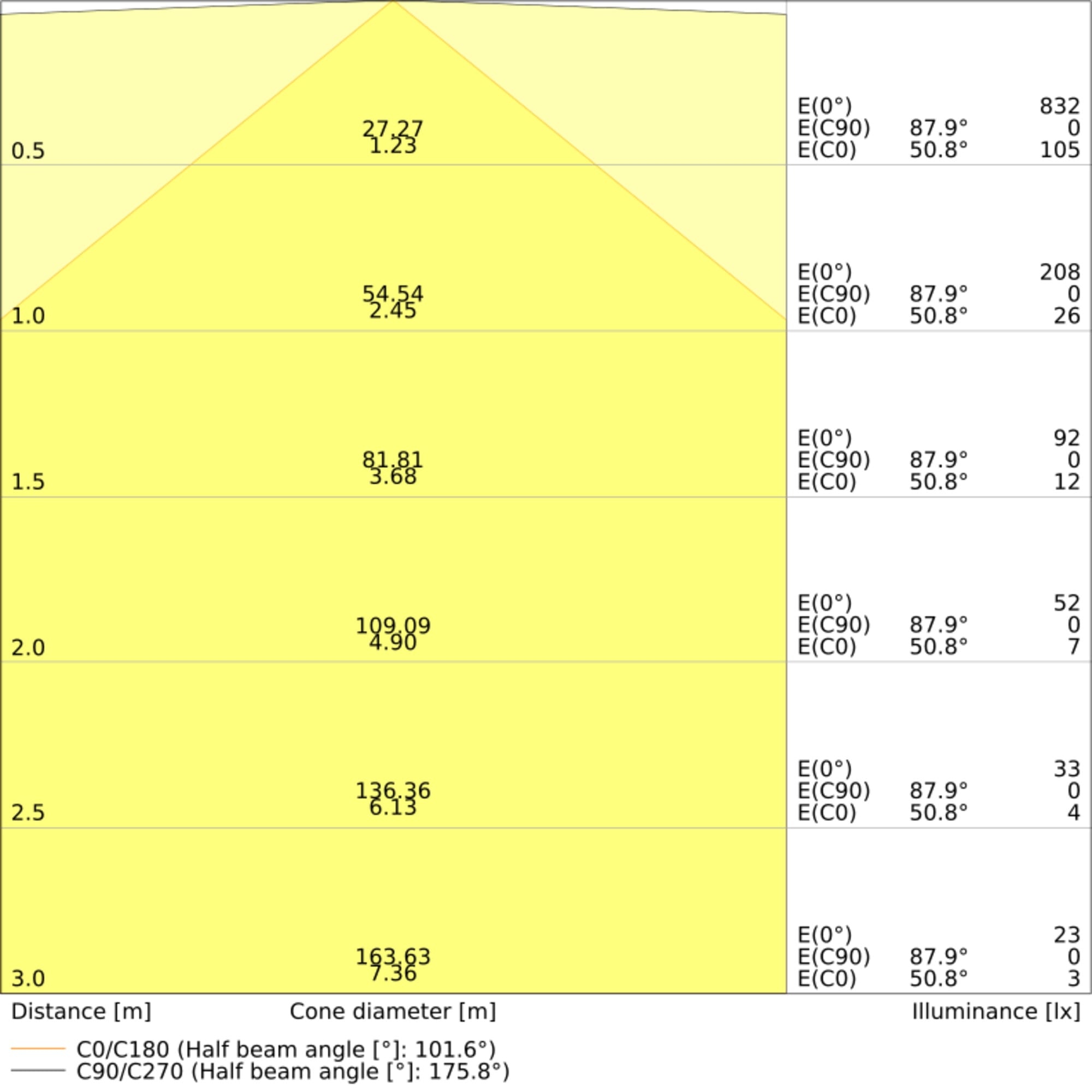

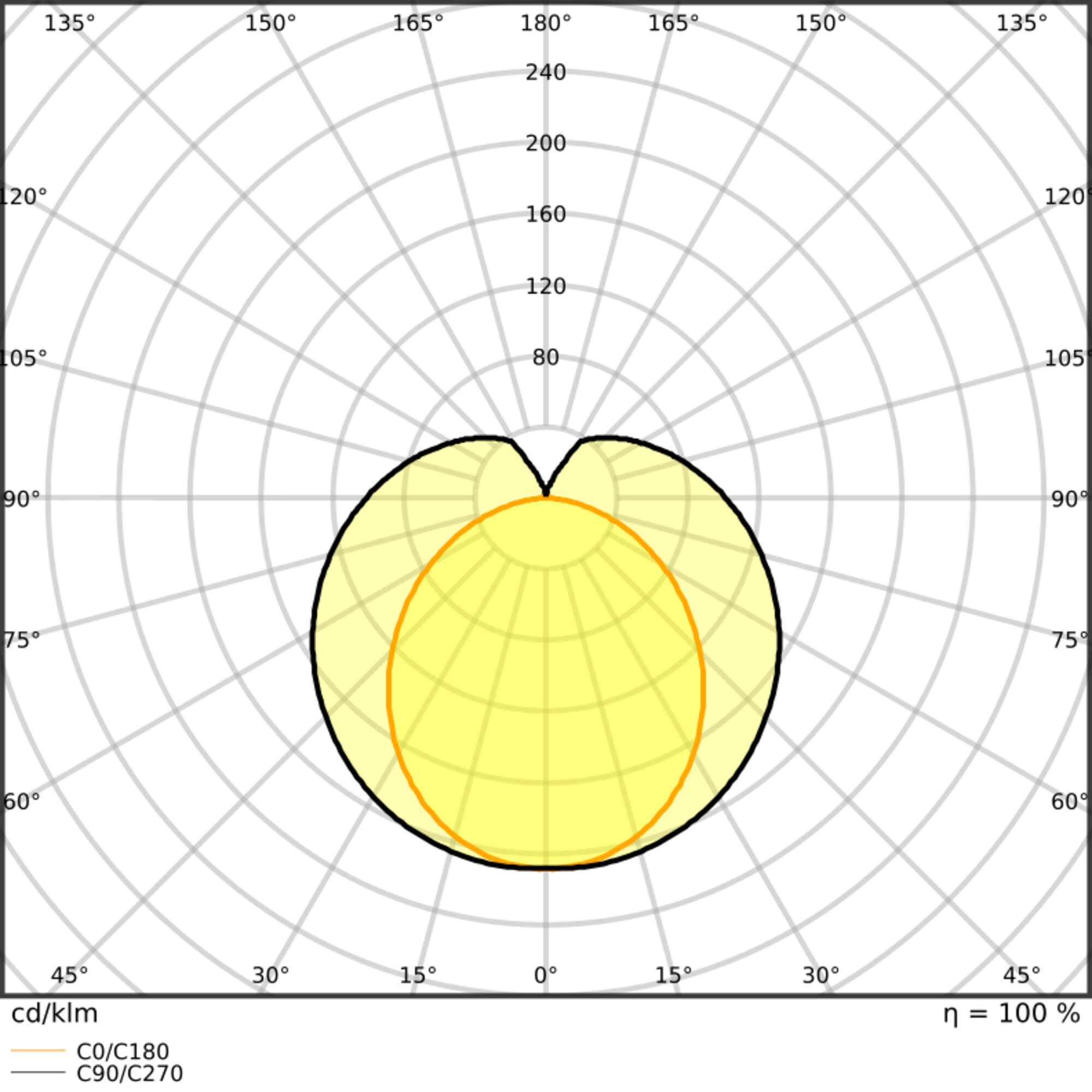

Ausstrahlungswinkel:

190...190 °

Farbkonsistenz (McAdam-Ellipse):

SDCM5

Dimmung Phasenabschnitt:

nein

Dimmung Phasenanschnitt:

nein

Dimmung Touch and Dim:

nein

Dimmung Zigbee:

nein

Dimmung Bluetooth:

nein

Dimmung Wi-Fi:

nein

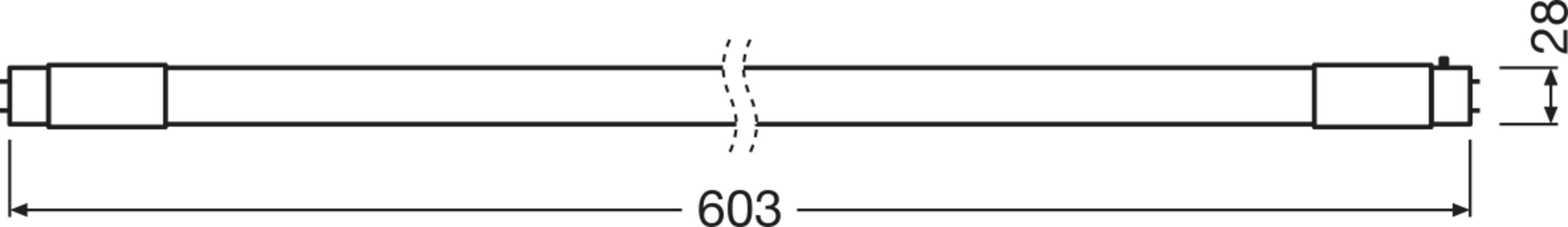

Durchmesser:

28 mm

Länge:

603 mm

Schutzart (IP):

IP20

Energieeffizienzklasse nach EU-Richtlinie 2019/2015:

E

Lampenbezeichnung:

sonstige

Min. Anzahl der Schaltvorgänge:

200000

Gewichteter Energieverbrauch in 1.000 Stunden:

8 kWh

Mittlere Nennlebensdauer:

50000 h

Fernbedienung möglich:

nein

Mit Bewegungsmelder:

nein

Mit Fernbedienung:

nein

Mit Dämmerungsschalter:

nein

Photobiologische Sicherheit nach EN 62471:

RG0

Kompatibel mit Apple HomeKit:

nein

Kompatibel mit Google Assistant:

nein

Kompatibel mit Amazon Alexa:

nein

IFTTT-Unterstützung verfügbar:

ja

Tubo LED per alimentazione convenzionale (CCG) funziona con sensori collegati, infrangibile . Caratteristiche del prodotto: Protocollo di rete: ZigBee 3.0 (rete mesh a 2,4 GHz). TUBO LED T8 EM Connected può essere utilizzato solo con i Connected Sensor di LEDVANCE. Vantaggi del prodotto: Nessuna flessione grazie al tubo di vetro. Protezione dal danneggiamento grazie allo speciale rivestimento in PET. Ritorno dell'investimento in tempi brevi grazie al basso consumo energetico e ai ridotti costi di manutenzione. Aree di applicazione: Illuminazione generale per temperature ambiente da -20 a +50 °C. Parcheggi, magazzini, aree produttive. Industria. Uffici. Consigli per la sicurezza: Non idoneo per il funzionamento con alimentatori elettronici.. Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.. L'intervallo di temperatura di esercizio del tubo LED è limitato. In caso di dubbi sull'idoneità dell'applicazione misurare la temperatura Tc sul prodotto prima dell'installazione.. Tutti i collegamenti elettrici devono essere effettuati da personale qualificato.. Scollegare la rete elettrica prima dell'installazione.. Non adatto per l'illuminazione di emergenza..
