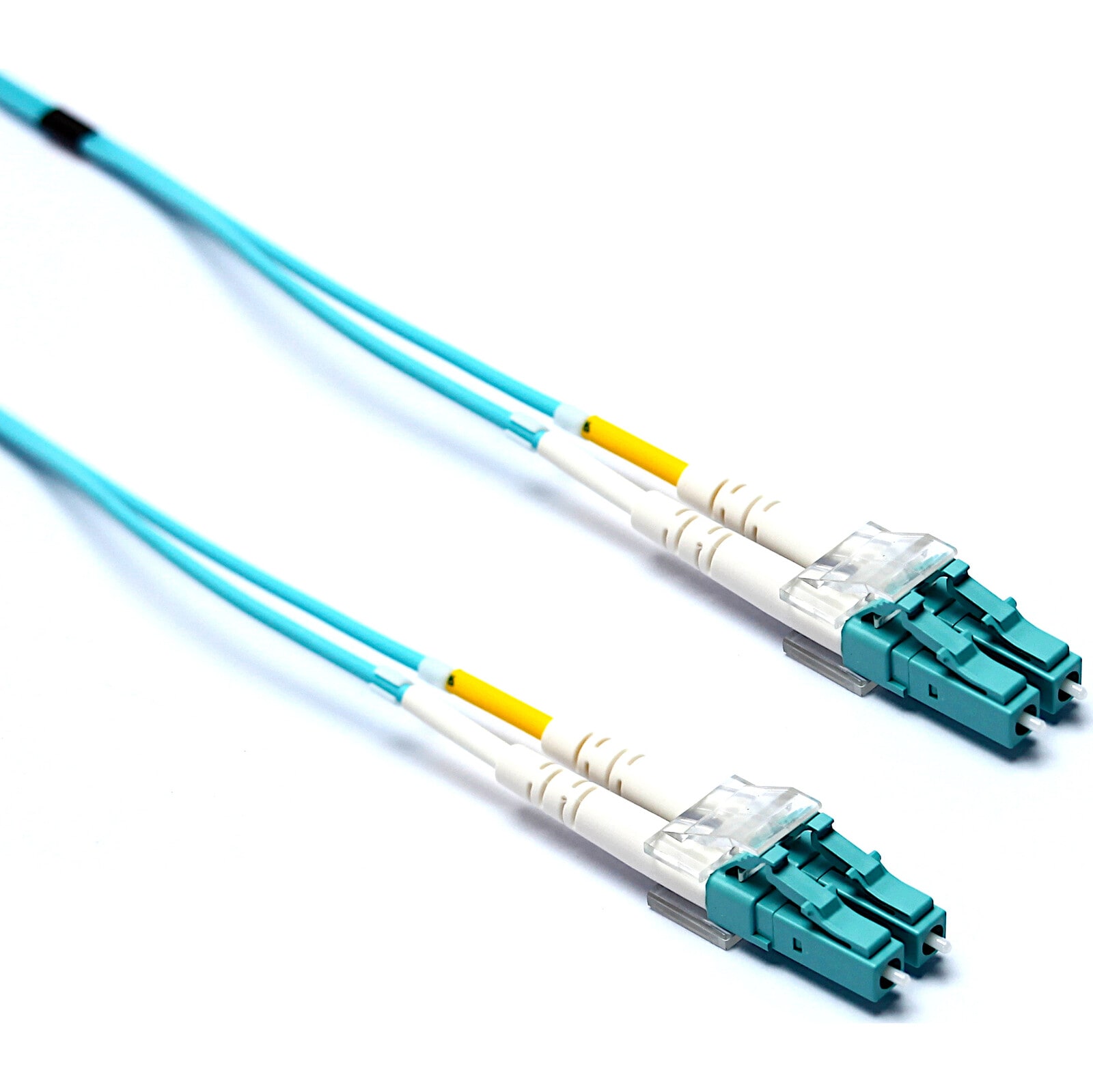

EXCEL - EXL200-053 Excel Enbeam OM3 P/L LC-LC 50/125 DX LS0 - 200-053
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Steckverbindertyp Anschluss 1 - LC
Faserart - Multimode 50/125
Länge - 20 m
Anzahl der Fasern - 2
Mantel-Farbe - türkis
Packung
1 ST
EAN
2000007435377
Artikelnummer
EXL200-053
Herstellernummer
200-053
Hersteller
EXL
Steckverbindertyp Anschluss 1:
LC
Faserart:
Multimode 50/125
Länge:
20 m
Anzahl der Fasern:
2
Mantel-Farbe:
türkis
Kategorie:
OM3
Steckverbindertyp Anschluss 2:
LC
Kabeltyp:
Duplex
Außendurchmesser Mantel der Einzelfaser:
2 mm
Knickschutztülle:
aufgesteckt
Flammwidrig nach IEC 60332-1-2:
ja
Raucharm nach EN IEC 61034-2:
ja
Excel OM3 50/125 µm duplex patch leads are manufactured from the highest quality 900 µm buffer/jacket optical fibre, terminated with ceramic ferrule connectors. Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive 'legs' of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibrecable, finally a label containing a unique batch number is fixed to the centre of cable for quality and traceability purposes. - Test certificate included - Low loss connectors - Zirconia ceramic UPC ferrules - Polarity changeable (Duplex Connectors) - Bend insensitive construction - 25 Year system warranty - CIBSE TM65 Embodied Carbon: 0.986 kg CO2e
