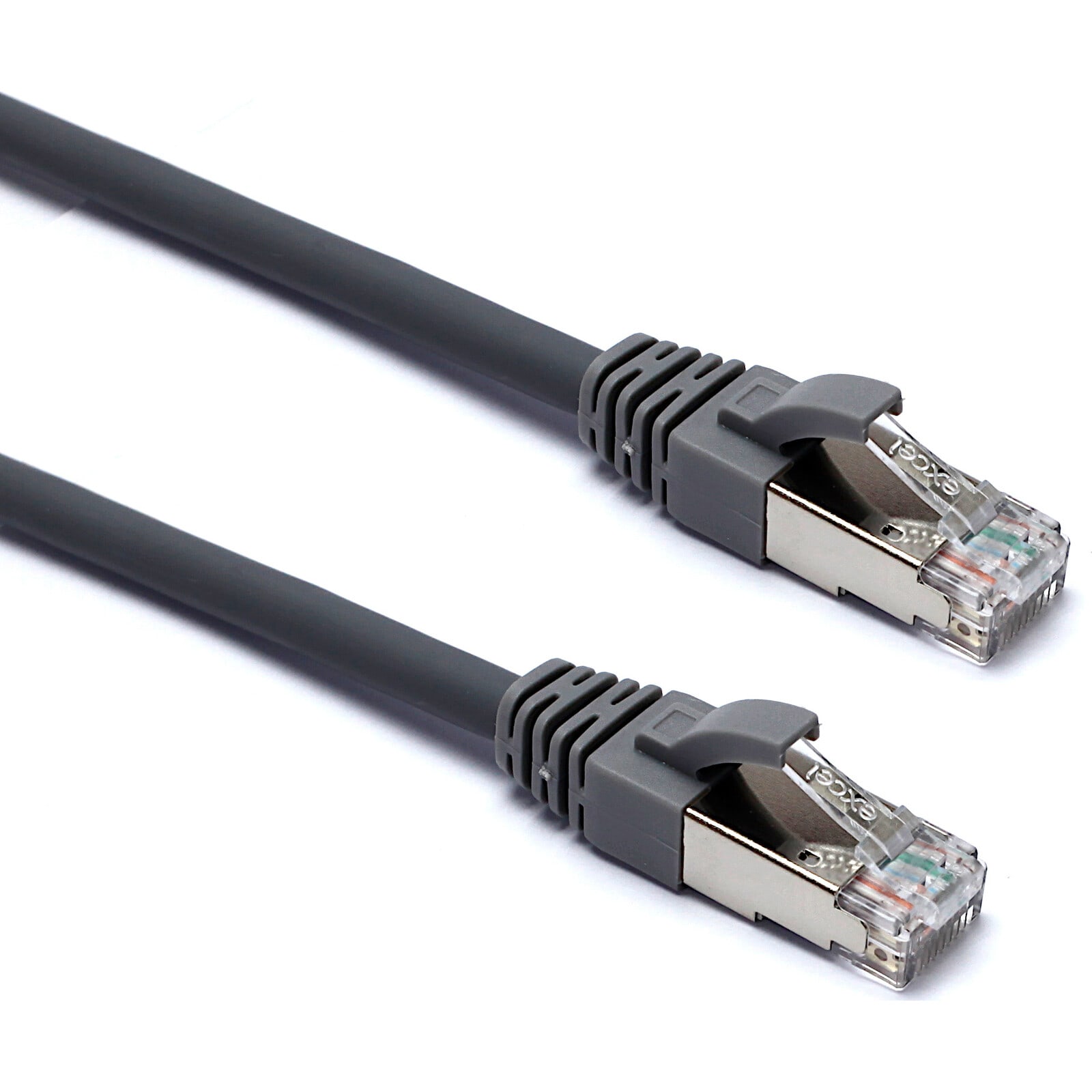

EXCEL - EXL100-113 Excel Cat6A P/Lead S/FTP LSOH Blade 2 m - 100-113
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Kategorie - 6A (IEC)
Kabeltyp - S/FTP
Länge - 2 m
Steckverbindertyp Anschluss 1 - RJ45 8(8)
Mantel-Farbe - grau
Packung
1 ST
EAN
2000007428034
Artikelnummer
EXL100-113
Herstellernummer
100-113
Hersteller
EXL
Kategorie:
6A (IEC)
Kabeltyp:
S/FTP
Länge:
2 m
Steckverbindertyp Anschluss 1:
RJ45 8(8)
Mantel-Farbe:
grau
Steckverbindertyp Anschluss 2:
RJ45 8(8)
Knickschutztülle:
angespritzt
Ausführung flammwidrig:
ja
Rasthebelschutz:
nein
Kabelkonstruktion:
1x4
Farbe der Knickschutztülle:
grau
Pinbelegung:
1:1
AWG-Querschnitt:
26
Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended todeliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet. Each Excel Category 6A patch leads consists of 4 twisted pairs of stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. - Suitable for 10 Gigabit, 10GBase-T, Ethernet application - Screened braid outer with individual foil screen -LSOH outer sheath - CIBSE TM65 Embodied Carbon: 0.672 kg CO2e
