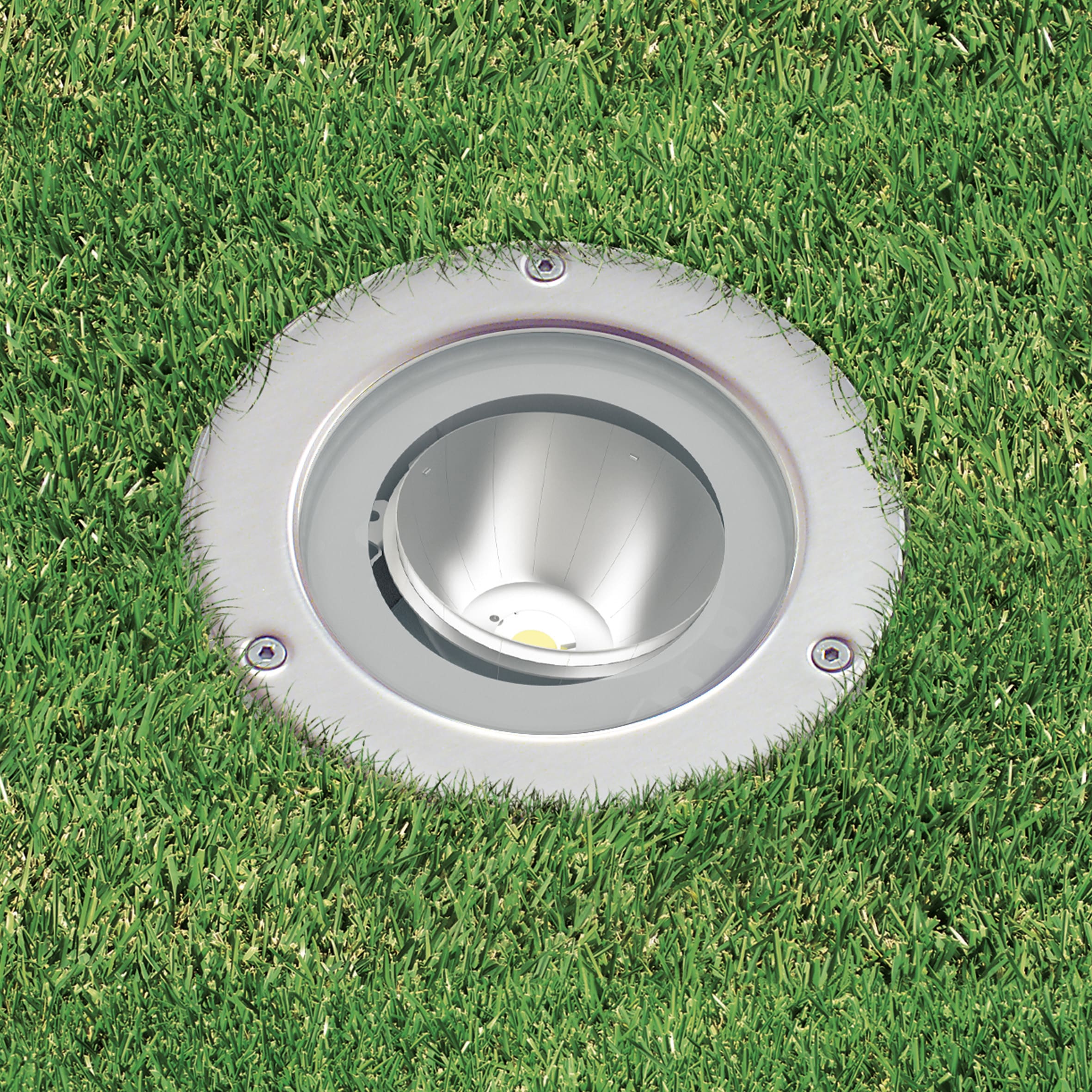

DISANO - DIS53078600 MINIFLOOR 1883 13W CLD INOX 4000K

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Schutzart (IP) - IP67

  • Farbtemperatur - 4000...4000 K

  • Bemessungslichtstrom nach IEC 62722-2-1 - 1300 lm

  • Leuchtmittel - LED nicht austauschbar

  • Nennspannung - 220...240 V

Packung

  • 1 ST

Produktserien

Minifloor a filo terreno

Alle Produkte dieser Serie ansehen

EAN

8012952123418

Artikelnummer

DIS53078600

Herstellernummer

53078600

Hersteller

DIS

Schutzart (IP):

IP67

Farbtemperatur:

4000...4000 K

Bemessungslichtstrom nach IEC 62722-2-1:

1300 lm

Leuchtmittel:

LED nicht austauschbar

Nennspannung:

220...240 V

Gehäusefarbe:

Edelstahl

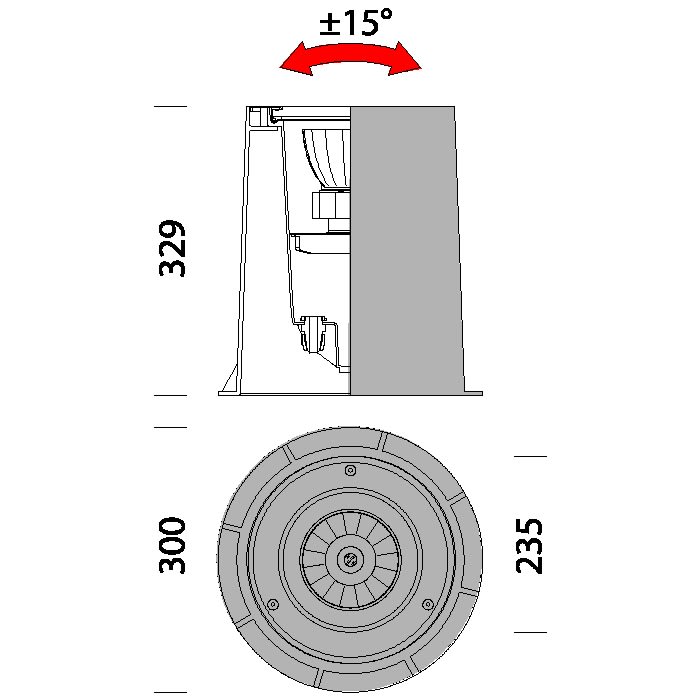

Einbauhöhe/-tiefe:

329 mm

Mit Leuchtmittel:

ja

Justierbar:

ja

Lichtverteilung:

symmetrisch

Außendurchmesser:

300 mm

Mit Betriebsgerät:

ja

Werkstoff der Abdeckung:

Glas transparent

Lichtfarbe:

weiß

Betriebsgerät:

elektronischer Trafo

Überrollbar:

ja

Schutzklasse:

II

Max. Belastung:

2000 kg

Elektrischer Anschluss mit Stecksystem:

ja

CORPO: In policarbonato con cornice in acciaio inox AISI 316. DIFFUSORE: Vetro di protezione temperato sp. 5 mm resistenti agli shock termici, agli urti ed al carico (max 2000Kg). DOTAZIONE: Versioni complete di cornice di serraggio. Di serie con scatoleper incasso. EQUIPAGGIAMENTO: Guarnizione di tenuta in gomma siliconica. Due pressacavi in nylon f.v. diam. 1/2 pollice gas. NORMATIVA: Prodotti in conformità alle norme EN60598 - CEI 34-21. Hanno grado di protezione IP67IK08 secondo le norme EN60529. In doppio isolamento. LED 1300lm - 13W - 3000/4000K - CRI 80. A richiesta: versione IP68 con sistema ermetico a gel sul fondo dell’ apparecchio (non idoneo per installazione ad immersione). Classificazione rischio fotobiologico: Gruppo esente.
