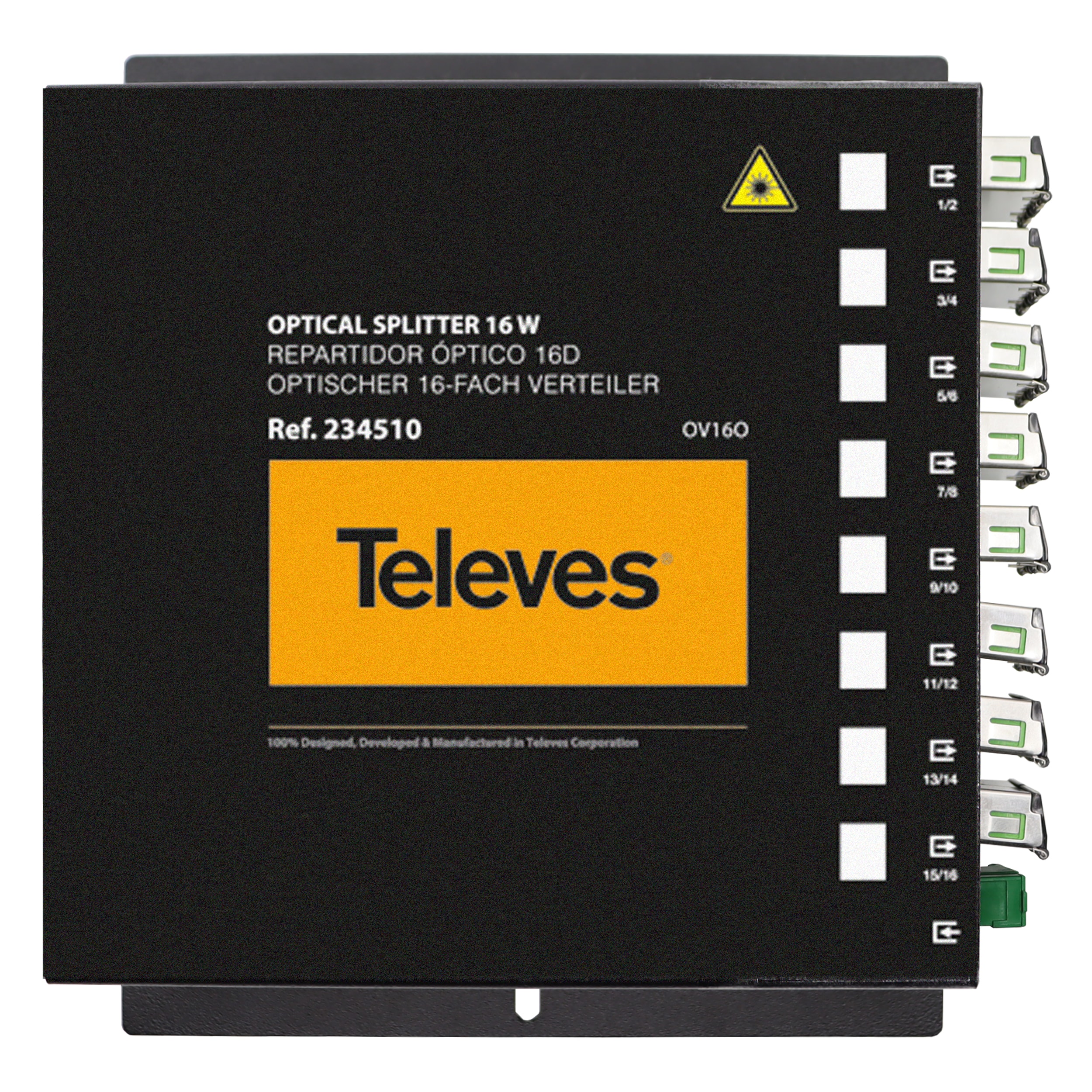

TELEVES ITALIA SRL - TVV234510 DIVISORE F.O. 1250...1650NM SC/APC 16VIE - 234510
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Typ - 1x16
Betriebswellenlänge - 1260...1650 nm
Montageart - Spleißkassette
Steckverbindertyp Eingang - SC/APC
Steckverbindertyp Ausgang - SC/APC
Packung
1 ST
EAN
8424450256015
Artikelnummer
TVV234510
Herstellernummer
234510
Hersteller
TVV
Typ:
1x16
Betriebswellenlänge:
1260...1650 nm
Montageart:
Spleißkassette
Steckverbindertyp Eingang:
SC/APC
Steckverbindertyp Ausgang:
SC/APC
Max. Einfügungsdämpfung:
13.5 dB
Min. Rückflussdämpfung:
60 dB
Max. Uniformitätsverlust:
1.2 dB
Max. Polarisationsabhängige Dämpfung (PDL):
0.3 dB
Min. Richtwirkung:
55 dB
Betriebstemperatur:
-40...85 °C
SC/APC 16W optical splitter 1260...1650nm 14dB. 16-way splitter with SC/APC connectors for optical signals in the 1260 nm-to-1650 nm range. Specially designed to complement the Overlight series. Also recommended for applications with WideBand LNB, with optical fiber or GPON networks. Its compact chassis is suitable for maximum optimisation of the available space. . High reliability due to rigorous manufacturing process and high quality materials. Low insertion losses. High uniformity among outputs. Possibility of being screwed directly to the wall. Convenient and space-saving due to the location of the connectors on the same side of the chassis. Designed for indoor installation. 100% European design, quality, and manufacturing. High strength: made of1.5 mm thick steel. Black color (RAL 9003). Single-mode fiber (SM). SC/APC connectors. Applicable in FTTx, PON, LAN and WAN systems.
