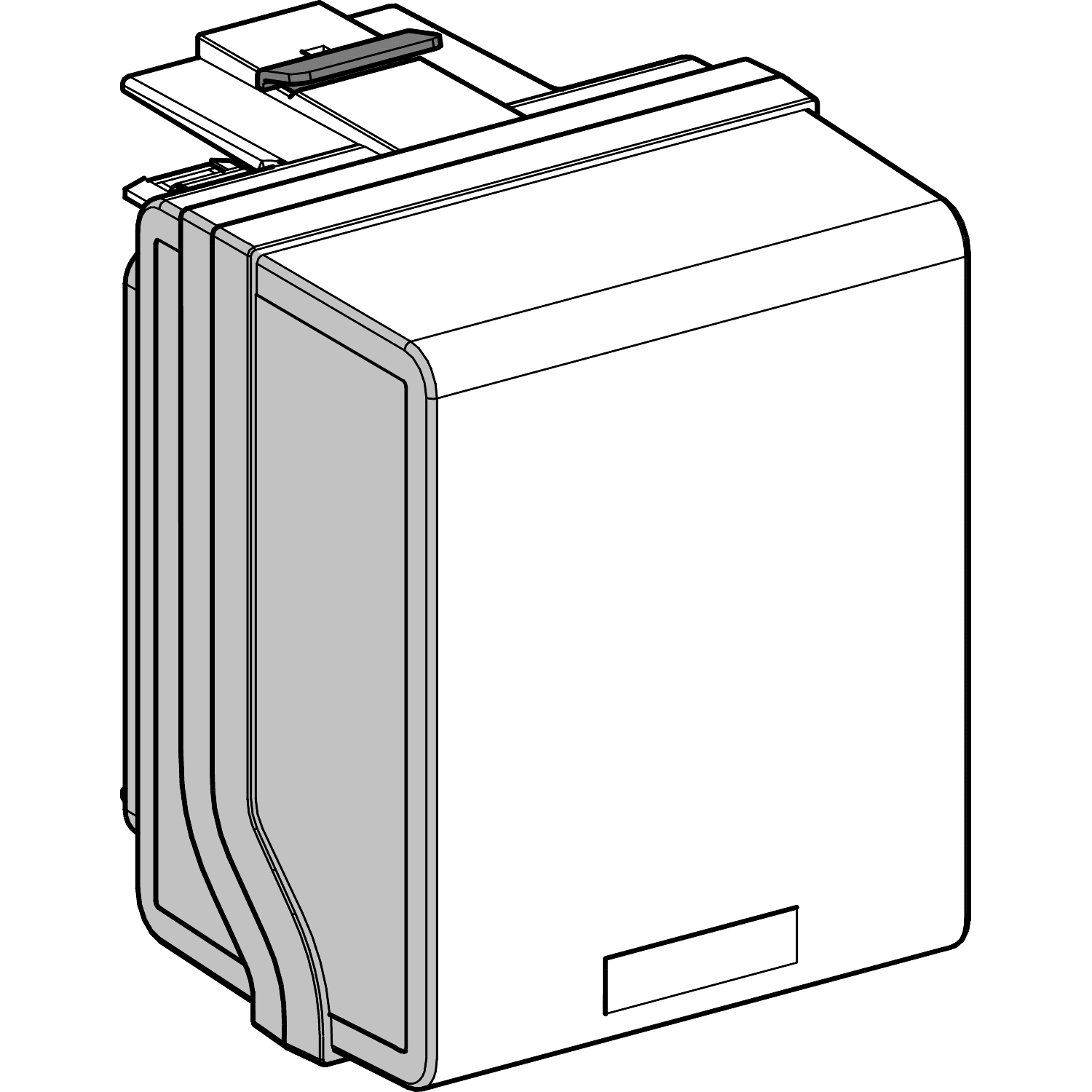

SCHNEIDER ELECTRIC - SNRKSB32CF5 KS Abgangsadapter, 32A, 3L+N+PE, fur Sic

Canalis tap-off unit for KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 32A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for size 10 x 38 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by drawing out with front door/cover opening. Canalis KS busbar trunking compatibility with plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
