SCHNEIDER ELECTRIC - SNRKSB160SF5 KS Abgangskasten,160A, 3L+PEN, fur Siche - KSB160SF5
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Anzahl der Leiter (ohne Erde) - 3
Polzahl - 3
Bemessungsstrom AC 50 Hz - 160 A
Bemessungsspannung AC 50 Hz - 230...690 V
Phasenselektion - nein
Packung
1 ST
Produktserien
EAN
3606480005732
Artikelnummer
SNRKSB160SF5
Herstellernummer
KSB160SF5
Hersteller
SNR
Anzahl der Leiter (ohne Erde):
3
Polzahl:
3
Bemessungsstrom AC 50 Hz:
160 A
Bemessungsspannung AC 50 Hz:
230...690 V
Phasenselektion:
nein
Abgangsart:
Kabel
Ausführung der Steckdosen:
sonstige
Farbe:
weiß
RAL-Nummer:
9001
Schutzart (IP):
IP55

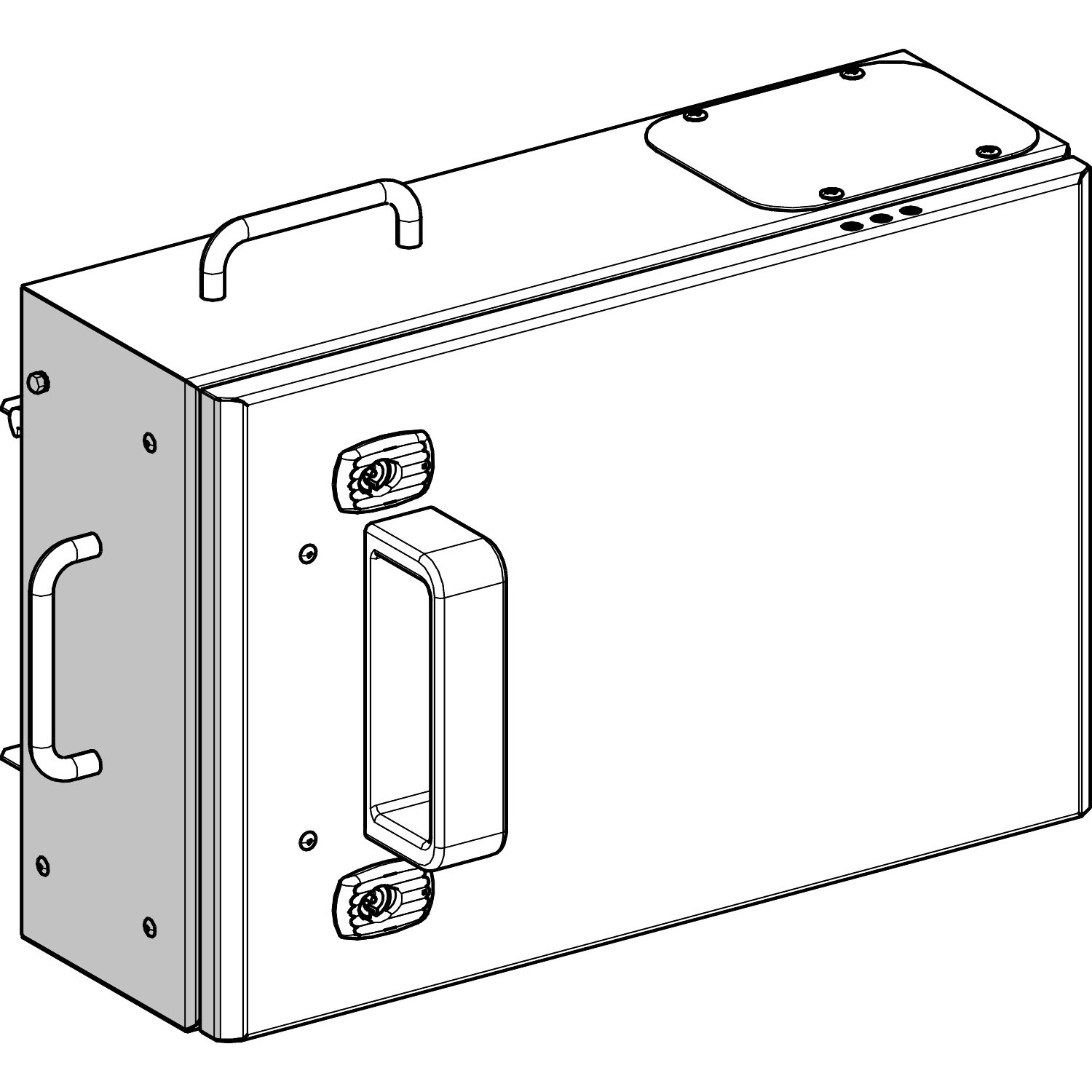

Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 160A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + PEN. It provided protection for size 0 fuses (Fuse to be ordered separately). It provided 1 right opening for FL21 gland plate to tap-off unit disconnection by rotary operating handle. Canalis KS busbar trunking compatibility with plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
