SCHNEIDER ELECTRIC - SNRKSA100AB4 KSA Endeinspeisung, 100A, Links- + Recht - KSA100AB4
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Bemessungsstrom AC 50 Hz - 100 A
Einspeisungsstelle - Ende
Ausführung - Einzel
Polzahl - 5
Bemessungsspannung AC 50 Hz - 230...690 V
Packung
1 ST
Produktserien
Canalis
EAN
3606480003899
Artikelnummer
SNRKSA100AB4
Herstellernummer
KSA100AB4
Hersteller
SNR
Bemessungsstrom AC 50 Hz:
100 A
Einspeisungsstelle:
Ende
Ausführung:
Einzel
Polzahl:
5
Bemessungsspannung AC 50 Hz:
230...690 V
Farbe:
weiß
RAL-Nummer:
9001
Schutzart (IP):
IP55

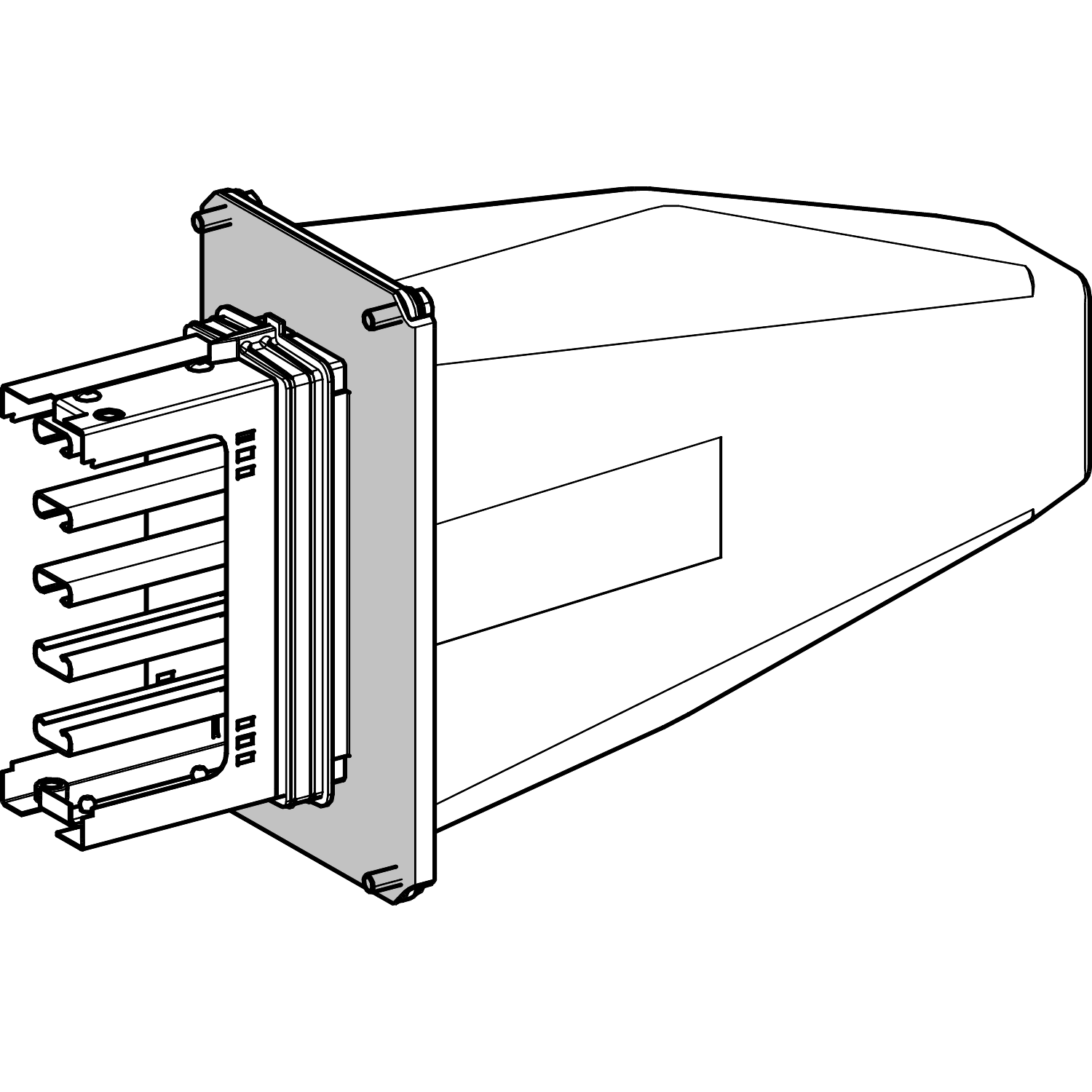

Canalis feed-unit for KSA. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 100A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with right/left mountinglocation, connection by terminal block. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
