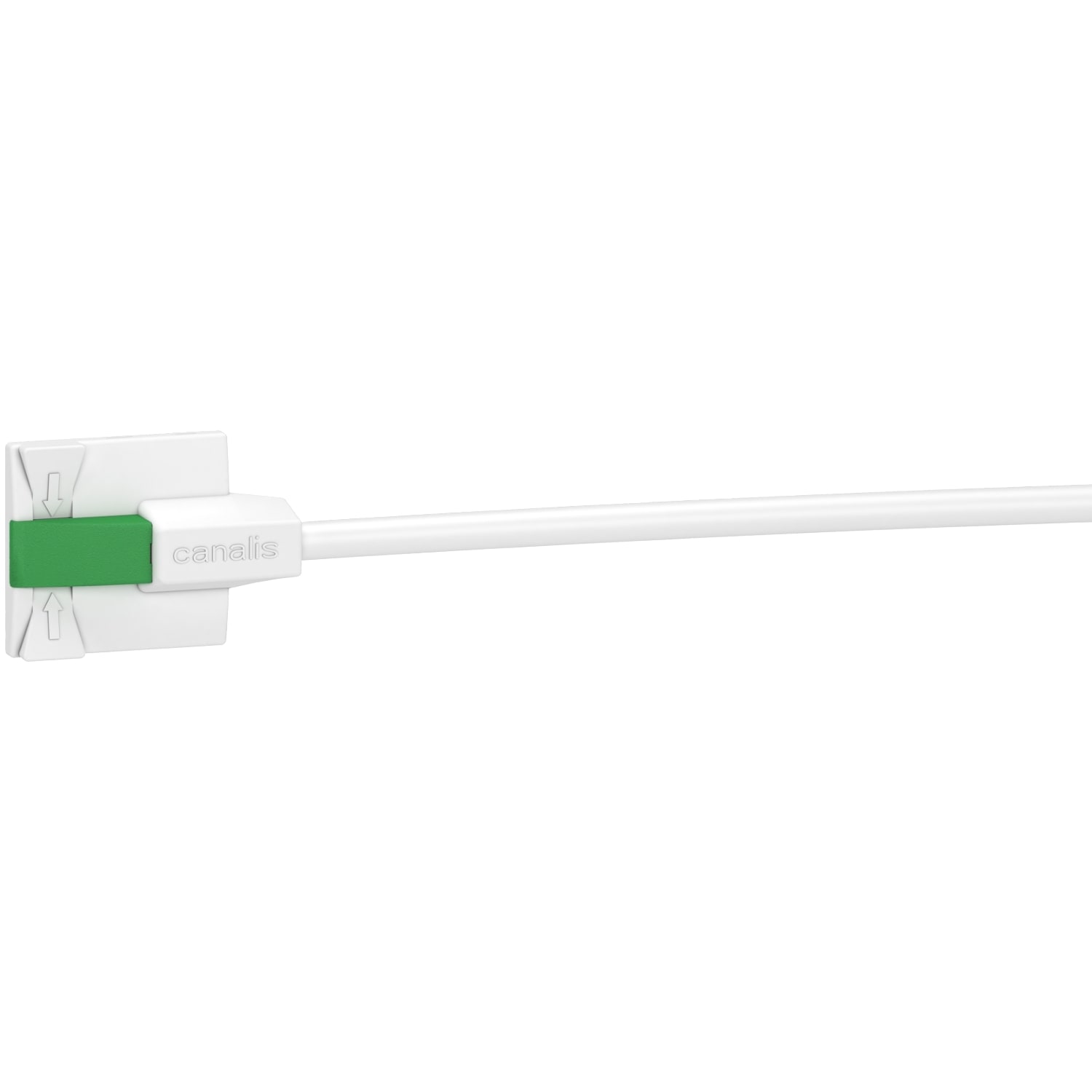

SCHNEIDER ELECTRIC - SNRKBC10DCS101 KBC Abgangsadapter, 10A, fester Phasenab
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Anzahl der Leiter (ohne Erde) - 2
Polzahl - 5
Bemessungsstrom bei AC 50 Hz - 10 A
Bemessungsspannung bei AC 50 Hz - 230...400 V
Phasenselektion - ja
Packung
1 ST
EAN
3606480002113
Artikelnummer
SNRKBC10DCS101
Herstellernummer
KBC10DCS101
Hersteller
SNR
Anzahl der Leiter (ohne Erde)
2
Polzahl
5
Bemessungsstrom bei AC 50 Hz
10 A
Bemessungsspannung bei AC 50 Hz
230...400 V
Phasenselektion
ja
Mit Arretierung
nein
Abgangsart
Steckdose
Anzahl der CEE-Steckdosen
0
Anzahl der NEMA-Steckdosen
0
Anzahl der sonstigen Steckdosen
0
Ausführung der Steckdosen
sonstige
Absicherung
ohne
Farbe
weiß
RAL-Nummer
9001
Schutzart (IP)
IP55
Länge
55 mm
Breite
12.5 mm
Höhe
42 mm
Canalis tap-off unit for KBA and KBB. It applied to lighting with cream RAL 9001 surface treatment. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. The rated operational current is 10A at 35 ℃. It provided L + N + PE and L2 + L1 + L3 + N + PE busbar trunking polarity, L1+N+PE tap-off unit polarity and fixed polarity connector. Sold in lots of 10 units. It provides IP55 protection which conforming to IEC 60529 standard. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
