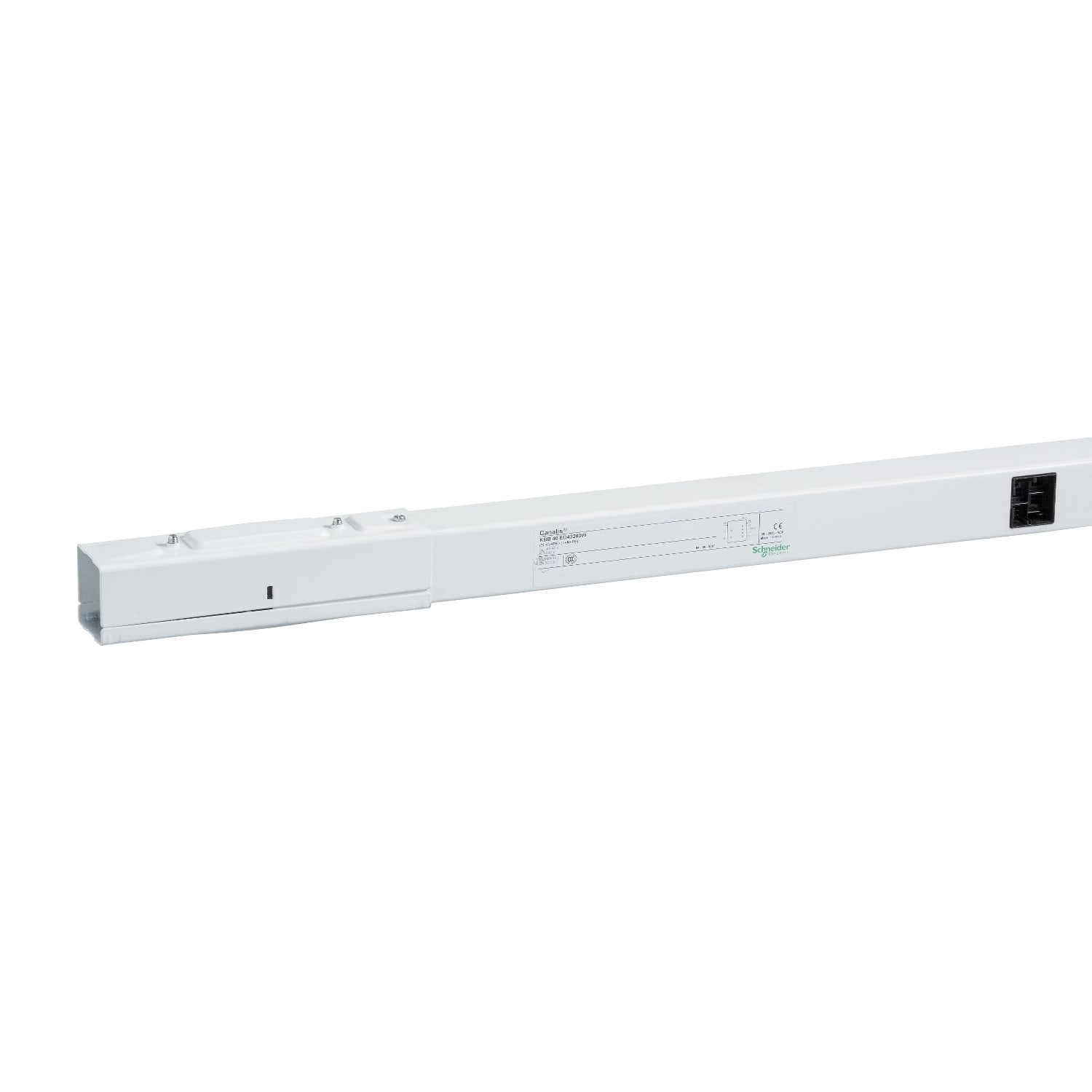

SCHNEIDER ELECTRIC - SNRKBB25ED42305W KBB gerades Element, 25A, 3m, 2 Netze, 3 - KBB25ED42305W
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Ausführung - Doppel
Bemessungsstrom AC 50 Hz - 25 A
Polzahl - 8
Anzahl der Leiter (ohne Erde) - 8
Flexibel - nein
Packung
1 ST
Produktserien
Canalis
Ausführung:
Doppel
Bemessungsstrom AC 50 Hz:
25 A
Polzahl:
8
Anzahl der Leiter (ohne Erde):
8
Flexibel:
nein
Bemessungsspannung AC 50 Hz:
230...400 V
Anzahl der Abgangsstellen:
5
Farbe:
weiß
RAL-Nummer:
9003
Schutzart (IP):
IP55
Länge:
3000 mm
Breite:
51 mm
Höhe:
60 mm
Canalis busbar trunking for KBB. It's applied to lighting and power socket distribution with white RAL 9003 surface treatment. The operational voltage is from 230VAC 50/60Hz to 400VAC 50/60Hz. The rated operational current is 25A at 35 ℃. Straight lengthbusbar which mounting by screws and whose busbar trunking polarity is 3L + N + PE and L + N + PE. Designed with 2 circuits allowing and 5 tap-off outlets. It provides 2 pT radiated magnetic field. Sold in lots of 6 units. It provides IP55 protection which conforming to EN/IEC 60529 standard. IK06 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
