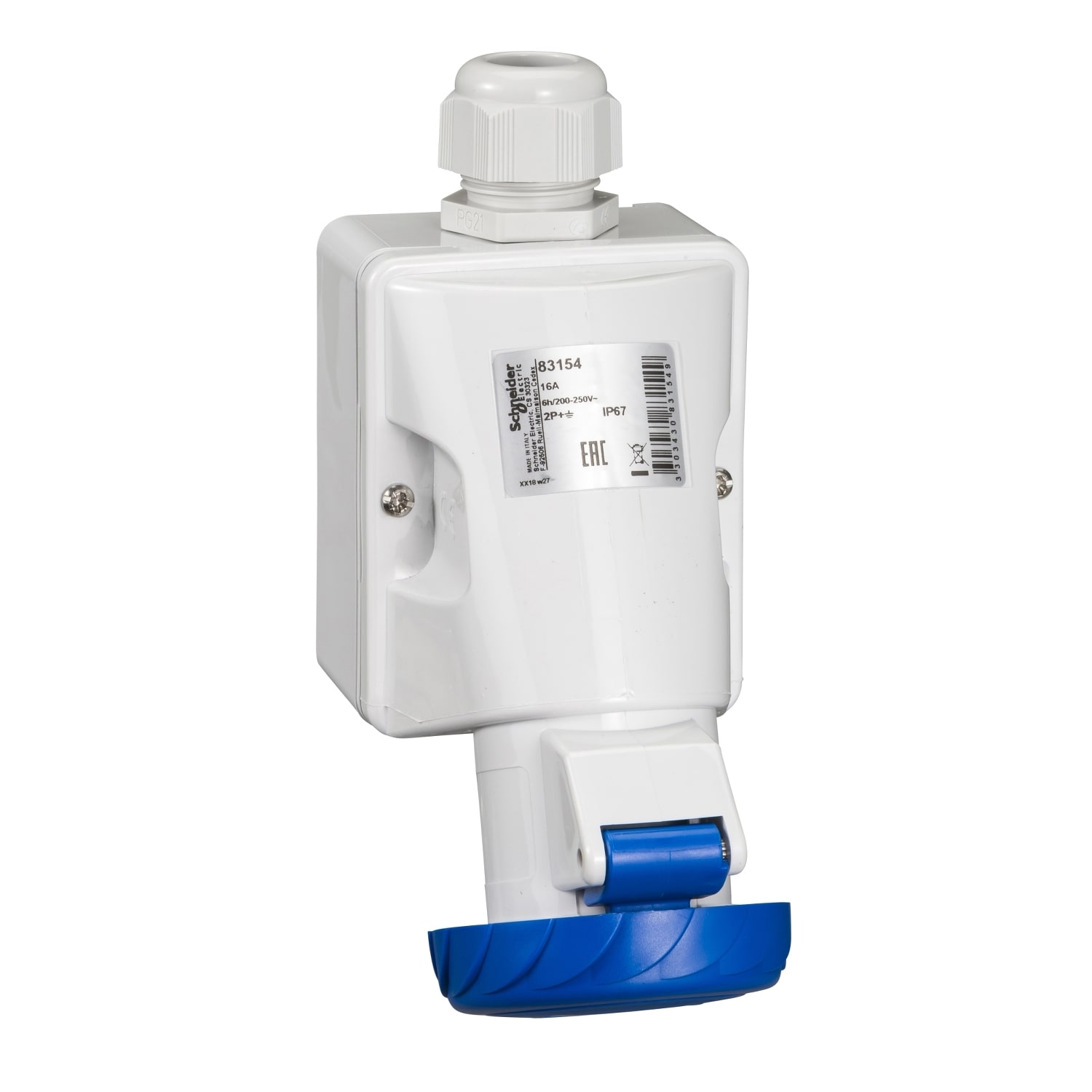

SCHNEIDER ELECTRIC - SNR83154 Industriesteckdose PratiKa - 16 A - 2P +
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Ausführung - Aufputz
IEC-Stromstärke - 16 A
Polzahl - 3
Spannung nach EN 60309-2 - 230 V (50+60 Hz) blau
Uhrzeit-Stellung - 6 h
Packung
1 ST
EAN
3303430831549
Artikelnummer
SNR83154
Herstellernummer
83154
Hersteller
SNR
Ausführung
Aufputz
IEC-Stromstärke
16 A
Polzahl
3
Spannung nach EN 60309-2
230 V (50+60 Hz) blau
Uhrzeit-Stellung
6 h
Kennfarbe
blau
Schutzart (IP)
IP67
Anschlusstechnik
Schraubklemme
Werkstoff
Kunststoff
Befestigungsart
Außenbefestigung
Militärausführung
nein
This Pratika industrial socket with completely loosened captive screws connection is wall mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 80mm x (H) 155mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
