LINEA LIGHT (ILED) - ILD91398W60 COB20-RX 2 D147 25W IP20 CRI80 BG

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Farbtemperatur - 3000...3000 K

  • Schutzart (IP) - IP20

  • Gehäusefarbe - weiß

  • Nennspannung - 220...240 V

  • Mit Leuchtmittel - ja

Packung

  • 1 ST

EAN

8056534790162

Artikelnummer

ILD91398W60

Herstellernummer

91398W60

Hersteller

LIA

Farbtemperatur:

3000...3000 K

Schutzart (IP):

IP20

Gehäusefarbe:

weiß

Nennspannung:

220...240 V

Mit Leuchtmittel:

ja

Werkstoff des Gehäuses:

Kunststoff

Bemessungslichtstrom nach IEC 62722-2-1:

3346 lm

Mit Betriebsgerät:

nein

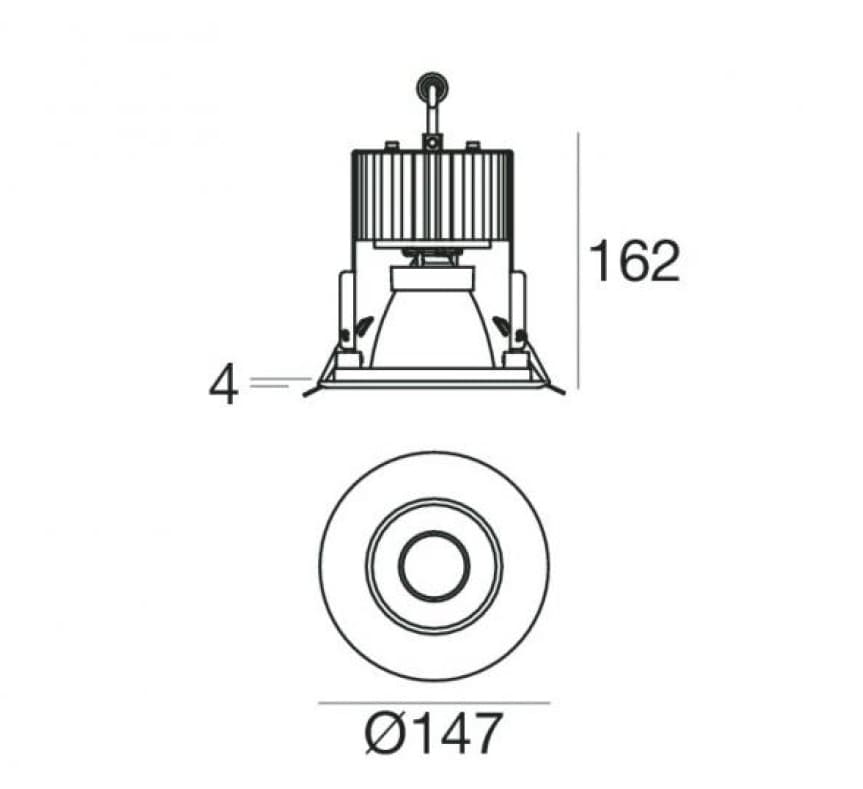

Einbauhöhe/-tiefe:

162 mm

Schutzklasse:

III

Betriebsgerät:

elektronischer Trafo

Lichtverteilung:

symmetrisch

Leuchtmittel:

LED nicht austauschbar

Außendurchmesser:

147 mm

Schlagfestigkeit:

IK05

Geeignet für Lampenleistung:

25...25 W

Lichtfarbe:

weiß

Lichtaustritt:

direkt

Glühdrahtprüfung nach IEC 60695-2-11:

850 °C - 30 s

Bildschirmarbeitsplatztauglich nach EN 12464-1:

nein

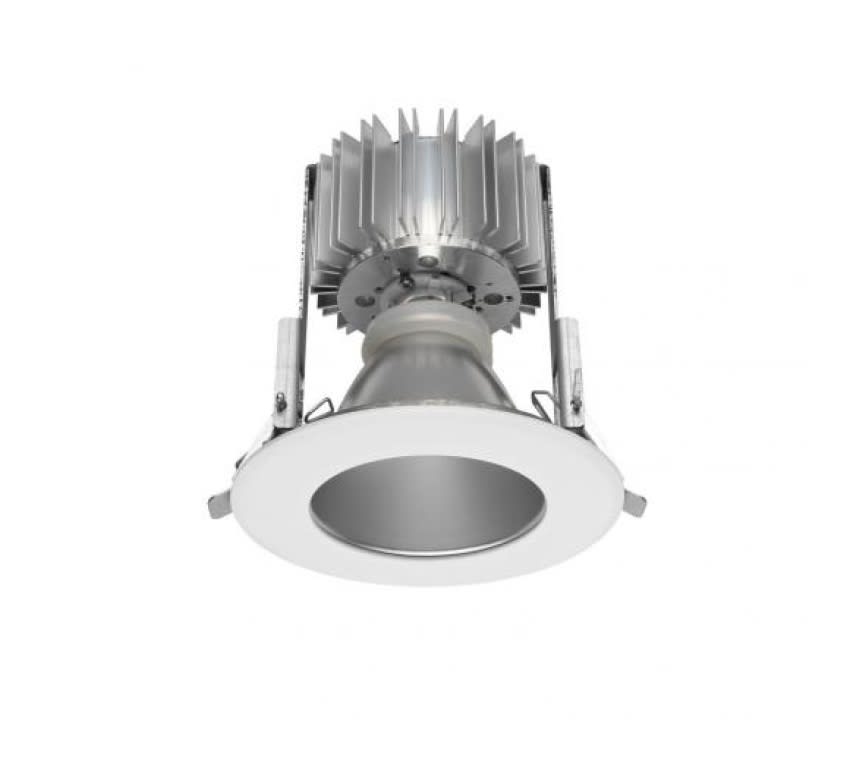

Downlight a singola emissione per applicazione indoor. La sorgente luminosa LED, di colore bianco caldo, con distribuzione luminosa 60°, è composta da 1 LED arrayled, con una CCT 3000 K ed un CRI 80; il flusso luminoso della sorgente è di 3346 lm, con un'efficienza nominale di 133.8 lm/W. Il corpo dell'apparecchio, realizzato in policarbonato, presenta una finitura di colore bianco ral 9003, ottenuta tramite verniciatura. Il grado di protezione è IP20; il peso complessivo è di 0.712 kg. Il driver d’alimentazione non è fornito e deve essere ordinato separatamente. La potenza assorbita dall'apparecchio è di 25 W. Il cavo per l'alimentazione è incluso e presenta una lunghezza di 0.3 m. L'apparecchio presenta una classe di isolamento III ed è installabile a soffitto, con foro tondo di diametro 129 mm (nel cartongesso).
