EXCEL - EXL190-910 Excel Solid Cat7A S/FTP B2ca LSOH 500 m - 190-910

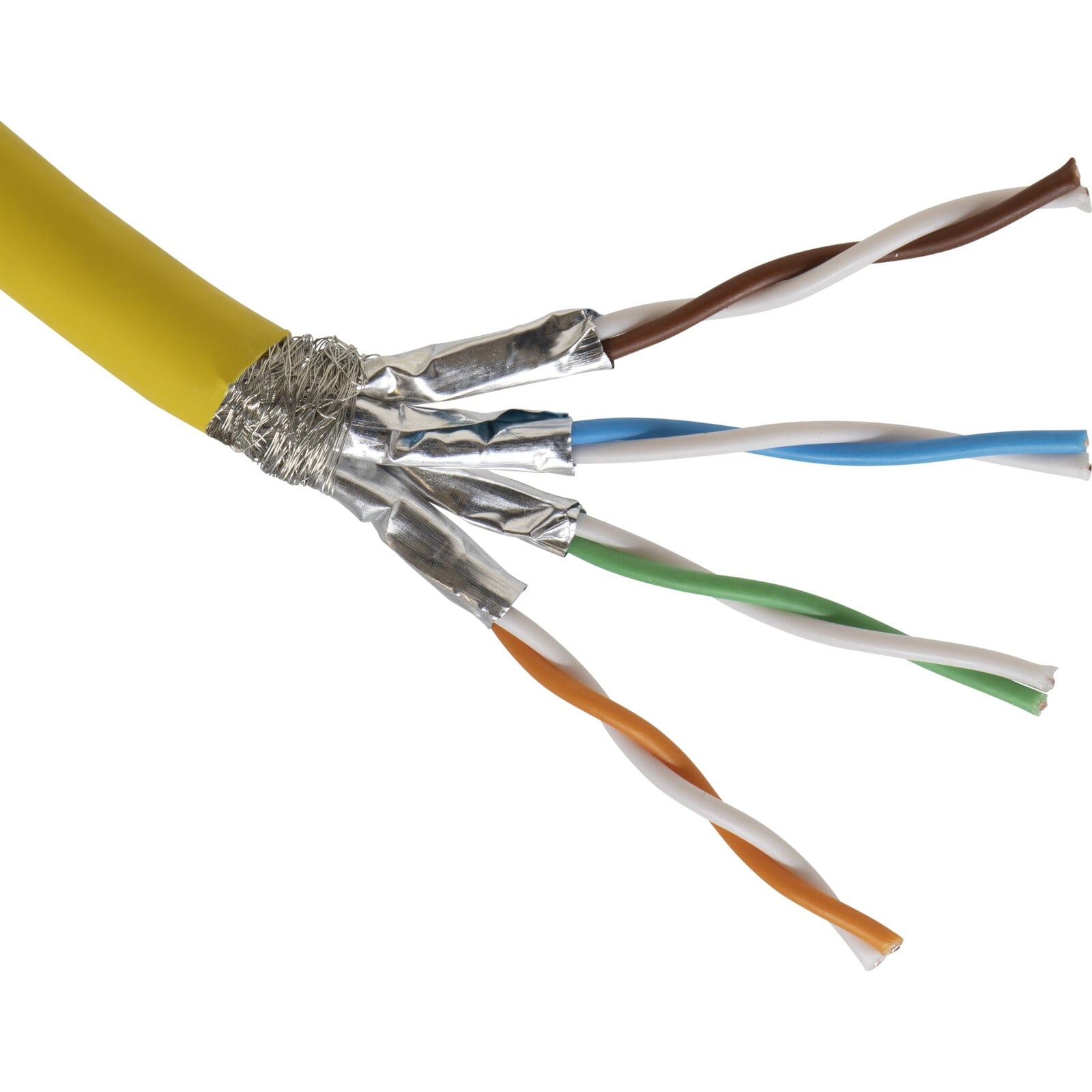

The Excel Category 7A screened S/FTP LS0H cable is designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards. This delivers Class FA link and channel performance supporting all applications detailed and proposed within the standards. This superior performance cable is ETL component verified. Each cable consists of 4 pairs individually wrapped in a covering of high quality, strong, aluminium/polyester foil tape providing an individual screen for each pair. These sub units are then cabled together, with the pairs set to different lay lengths to ensure optimum performance, an overall braid screen is applied to provide further immunity to outside noise and to mitigate any risk of alien cross talk. The print legend on the cable now includes information regarding the DOP number, test and classification of the cable for traceability. - Category 7A performance to 1000 MHz - Individual foil pairs with overall braid screen - High performance design - 25 year system warranty - Sequential metre markings - Euroclass: B2ca-s1a,d1,a1 - CIBSE TM65 Embodied Carbon: 237.855 kg CO2e
