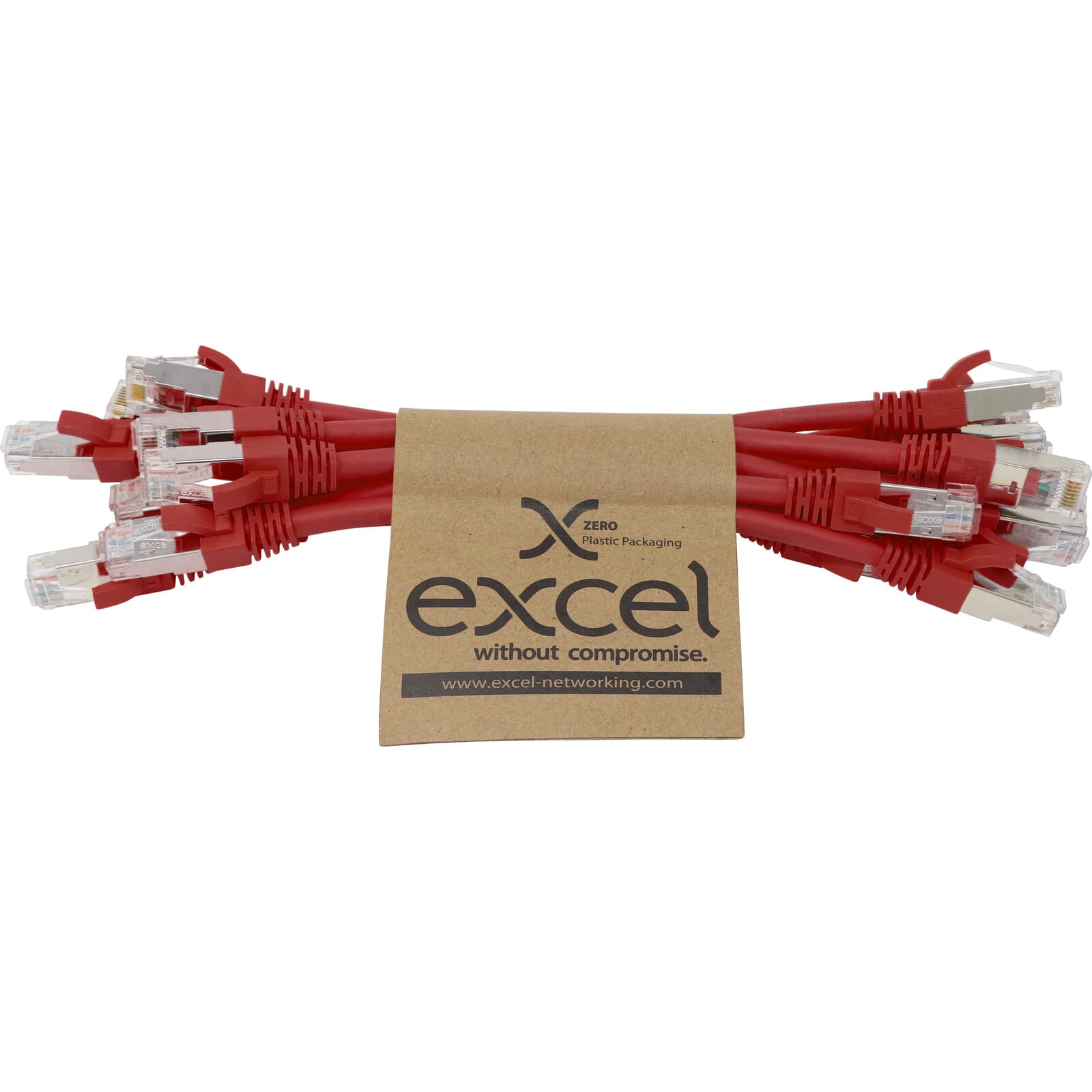

EXCEL - EXL101-193-10 Excel Cat6A P/Lead S/FTP LSOH 215 mm Red - 101-193-10
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Kategorie - 6A (IEC)
Kabeltyp - S/FTP
Länge - 0.215 m
Steckverbindertyp Anschluss 1 - RJ45 8(8)
Mantel-Farbe - rot
Packung
1 ST
Grüne Produktbewertung
CO2-Fußabdruck von Produkten
0,5 kg CO₂-Äquivalent
EAN
2000007433243
Artikelnummer
EXL101-193-10
Herstellernummer
101-193-10
Hersteller
EXL
Kategorie:
6A (IEC)
Kabeltyp:
S/FTP
Länge:
0.215 m
Steckverbindertyp Anschluss 1:
RJ45 8(8)
Mantel-Farbe:
rot
Steckverbindertyp Anschluss 2:
RJ45 8(8)
Knickschutztülle:
angespritzt
Ausführung flammwidrig:
ja
Rasthebelschutz:
nein
Kabelkonstruktion:
1x4
Farbe der Knickschutztülle:
rot
Pinbelegung:
1:1
AWG-Querschnitt:
26
Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended todeliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet. Each Excel Category 6A patch lead consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades. - Panel-to-switch length - Specified to 500MHz - Suitable for 10 Gigabit 10GBase-T, POE++ applications - Individual foil screen over each pair - Blade style moulded strain relief boot with clip protector - LSOH outer sheath - CIBSE TM65 Embodied Carbon: 1.603 kg CO2e
