EXCEL - EXL100-216 Excel Solid Cat5e Cable F/UTP PVC Eca 30 - 100-216

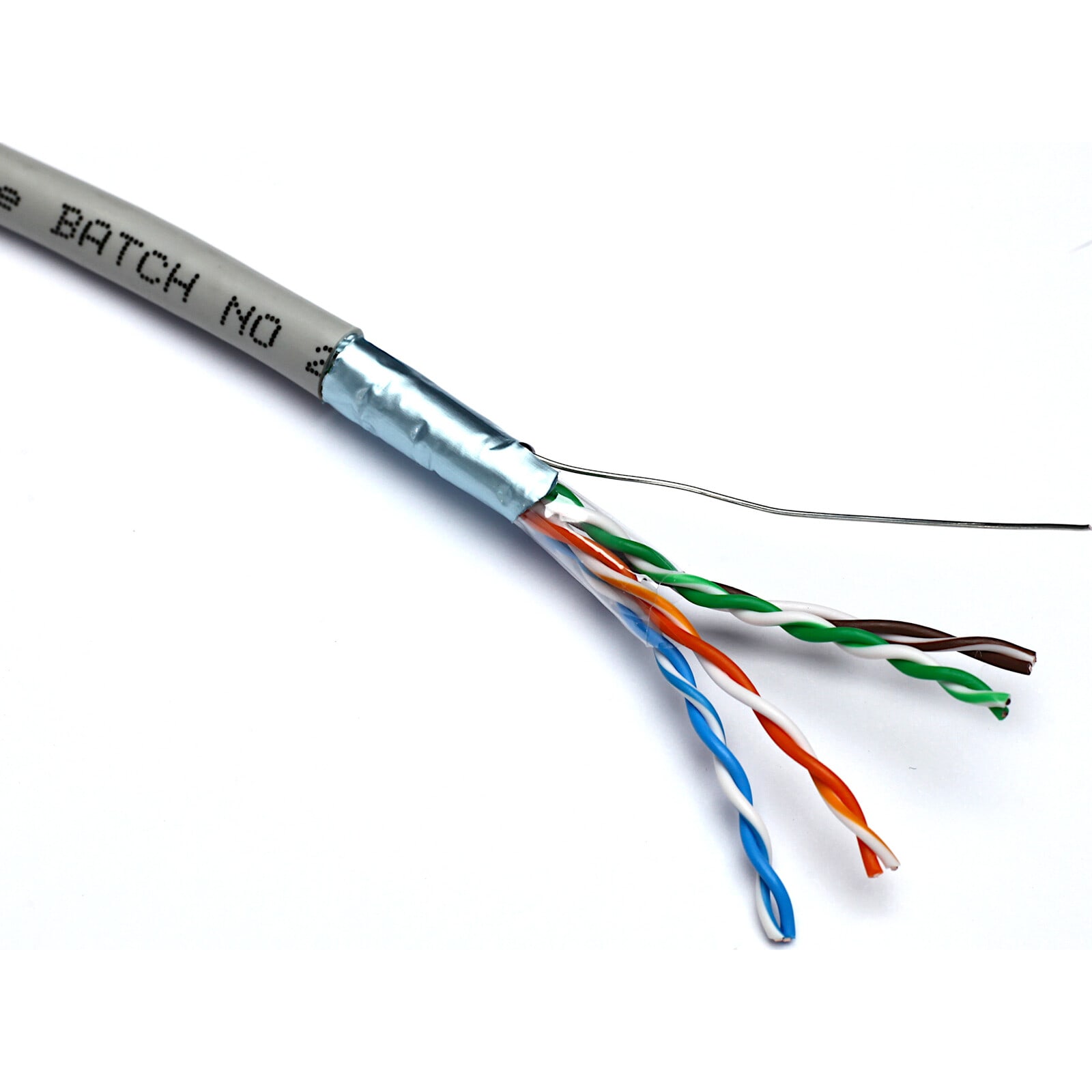

Excel solid Cat5e ethernet cable F/UTP CPR Euroclass Eca are manufactured and tested to ISO 11801, EN 50173 and ANSI/TIA‐568‐C Cat5e specifications, 305 m boxes. Each cable consists of 8 colour coded solid copper conductors twisted together to form four pairs. These pairs are wrapped in an aluminium mylar tape screen with a solid 24 AWG drain wire. The whole cable is produced in PVC sheath which is metre marked and labelled with part code and DoP information. - Cat5e solid copper cable - F/UTP overall foil screening - No conductor screening - Outer sheath colour grey (RAL7038) - Reaction-to-fire class according to EN 13501-6: Eca - 24 AWG size conductors - CIBSE TM65 Embodied Carbon: 109.020 kg CO2e
