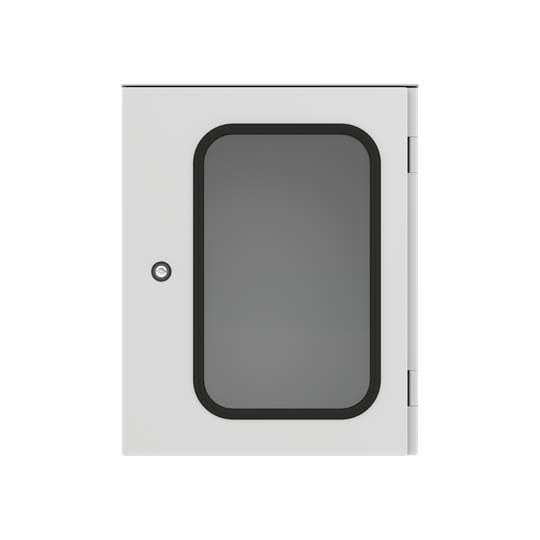

ABB SPA - ABB4TBA831129C0100 ARIA54 QUADRO PORTA FINESTRATA

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Breite - 415 mm

  • Höhe - 515 mm

  • Tiefe - 236 mm

  • Werkstoff - Kunststoff

  • Werkstoffgüte - GFK

Packung

  • 1 ST

Grüne Produktbewertung

Grüne Bewertung

EAN

5411815234422

Artikelnummer

ABB4TBA831129C0100

Herstellernummer

4TBA831129C0100

Hersteller

ABB

Breite:

415 mm

Höhe:

515 mm

Tiefe:

236 mm

Werkstoff:

Kunststoff

Werkstoffgüte:

GFK

Ausführung der Oberfläche:

unbehandelt

Farbe:

grau

RAL-Nummer:

7035

Mit Montageplatte:

nein

Mit Tür:

ja

Anzahl der Türen:

1

Anzahl der Schlösser:

1

Mit Oberteil:

nein

Transparenter Deckel:

nein

Vorprägungen:

nein

Schlagfestigkeit:

IK07

Schutzart (IP):

IP54

Schutzart (NEMA):

12

Wärmeverlustkapazität (Delta T = 20 K) nach IEC/TR 60890:

40 W

Max. zulässige Belastung des Gehäuses/Schranks nach IEC 62208:

1334.16 N

Max. zulässige Belastung der Tür(en) nach IEC 62208:

78.48 N

Max. zulässige Belastung der Montageplatte nach IEC 62208:

1334.16 N

The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment,thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70?C (peak temperatures up to 130?C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V.PA541 Cabinet with window door 515x415x230 ARIA, double bit 3mm, 3-point locking IP54, IK07
