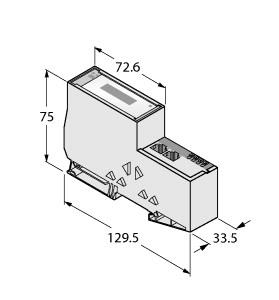

TURCK BANNER SRL - TUK6827338 BL20-E-GW-EN/ET

Gateway for the BL20 I/O System, Multiprotocol Interface for Ethernet, With Extended Temperature Range, DIP switch for adjustment of the node address, Protection class IP20, 2 x end brackets BL20-WEW35/2-SW, 1 x end plate BL20-ABPL, LEDs for display of supply voltage, group and bus errors, Multiprotocol gateway between the BL20 system and the Ethernet protocols Modbus TCP, EtherNet/IP? and PROFINET (from VN 03-00), The PROFINET protocol supports fast start-up (FSU), The EtherNet/IP? protocol supports QuickConnect (QC), Integrated switch 10/100 Mbps, Two RJ45 male for fieldbus connection, Push-in clamps for connection of power supply, Extended temperature range: -25 ?C?+60 ?C, Circuit boards with conformal coating
