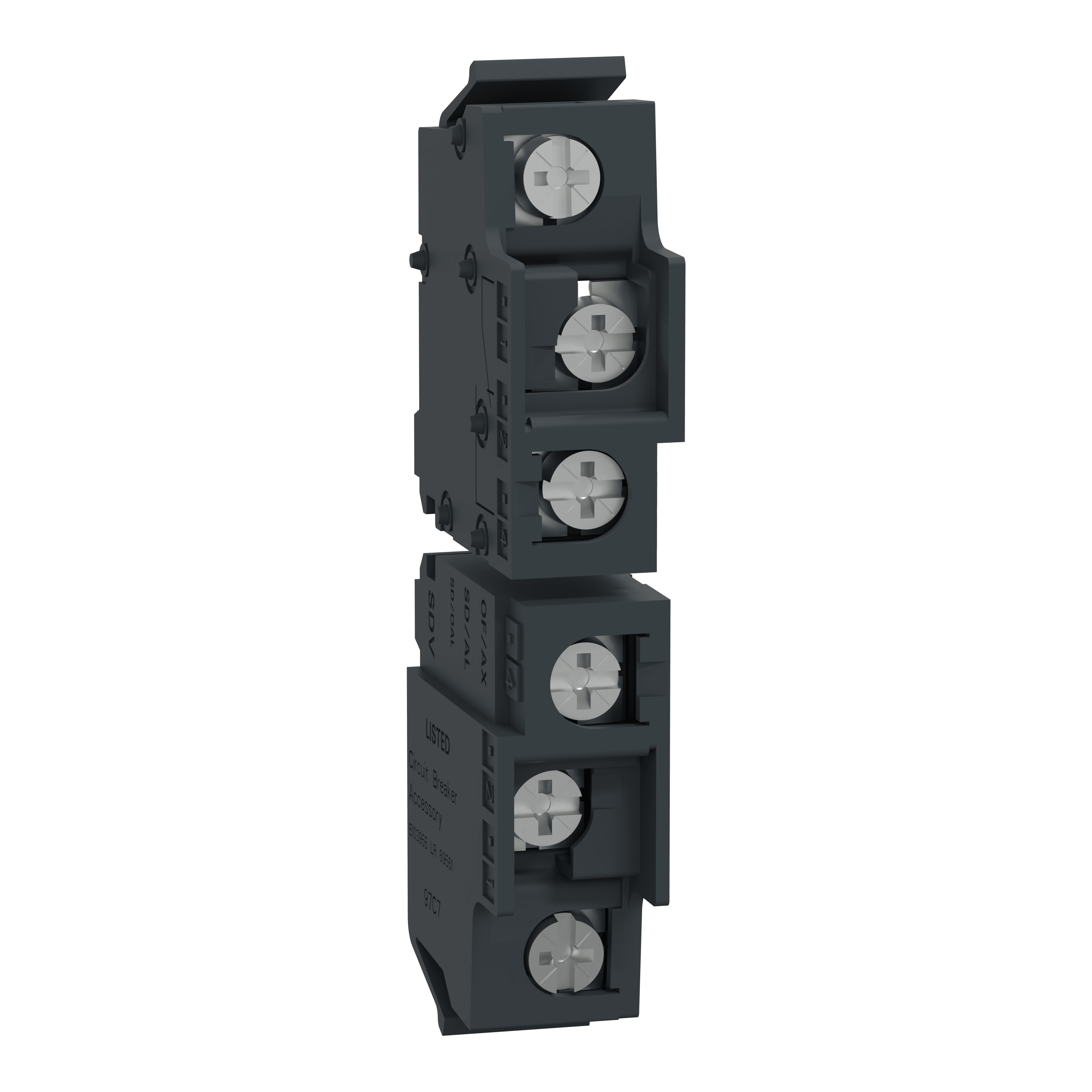

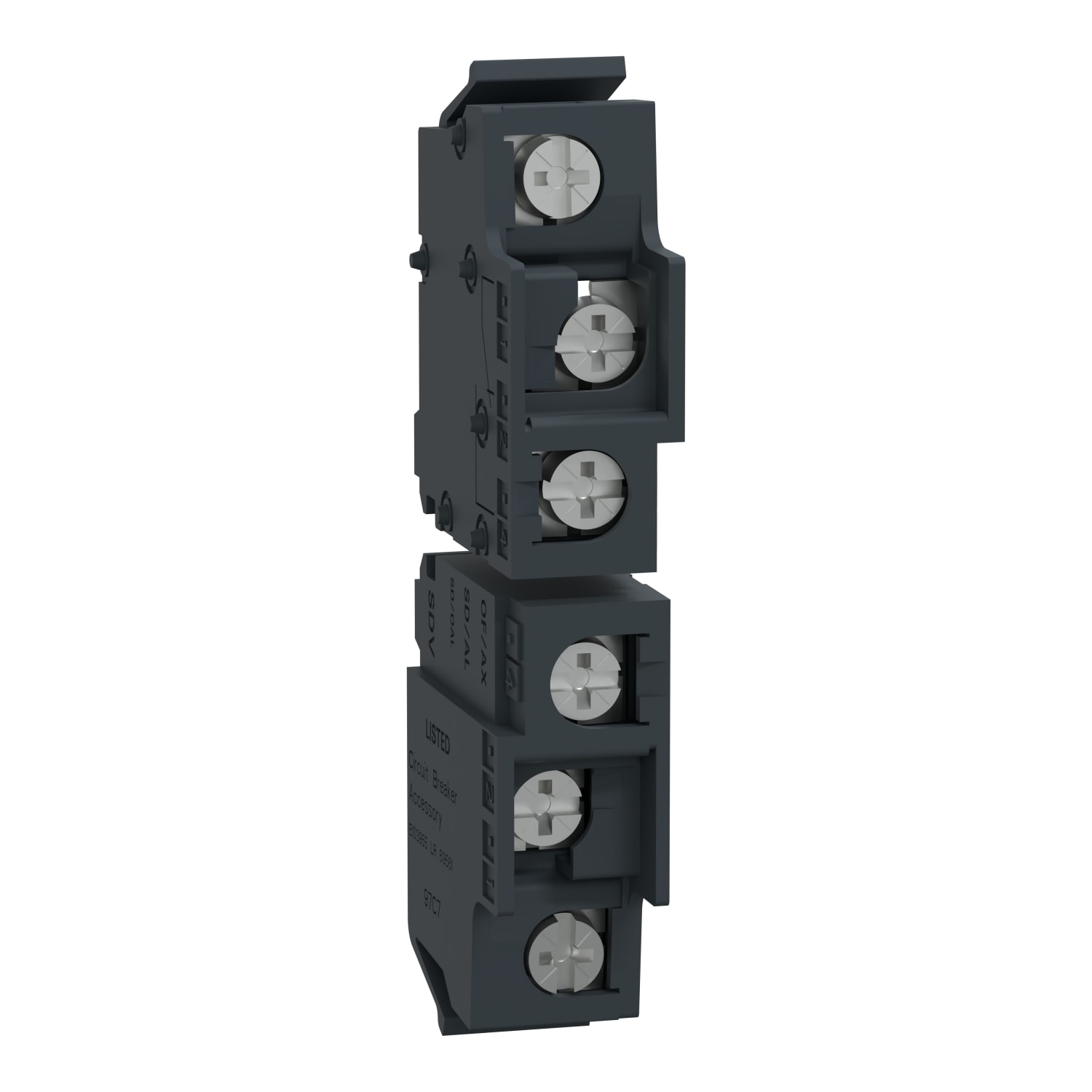

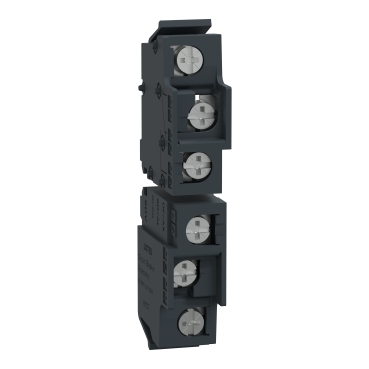

SCHNEIDER ELECTRIC - SNRTPSAUX43 CONTATTI AUSIL., SORG. I E II, 250A&630A

TPSAUX43 is auxiliary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on source 1 or source 2 for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The minimum load current is provided 100mA@24VDC. It is mounted mode "clip-on" inside of front cover from transfer switch. This spring terminal is fitted with 0.5-1.5 mm²(20-16 AWG) cables.
