SCHNEIDER ELECTRIC - SNRTPCDIO05 DISTACCO DEL CARICO, OUTPUT

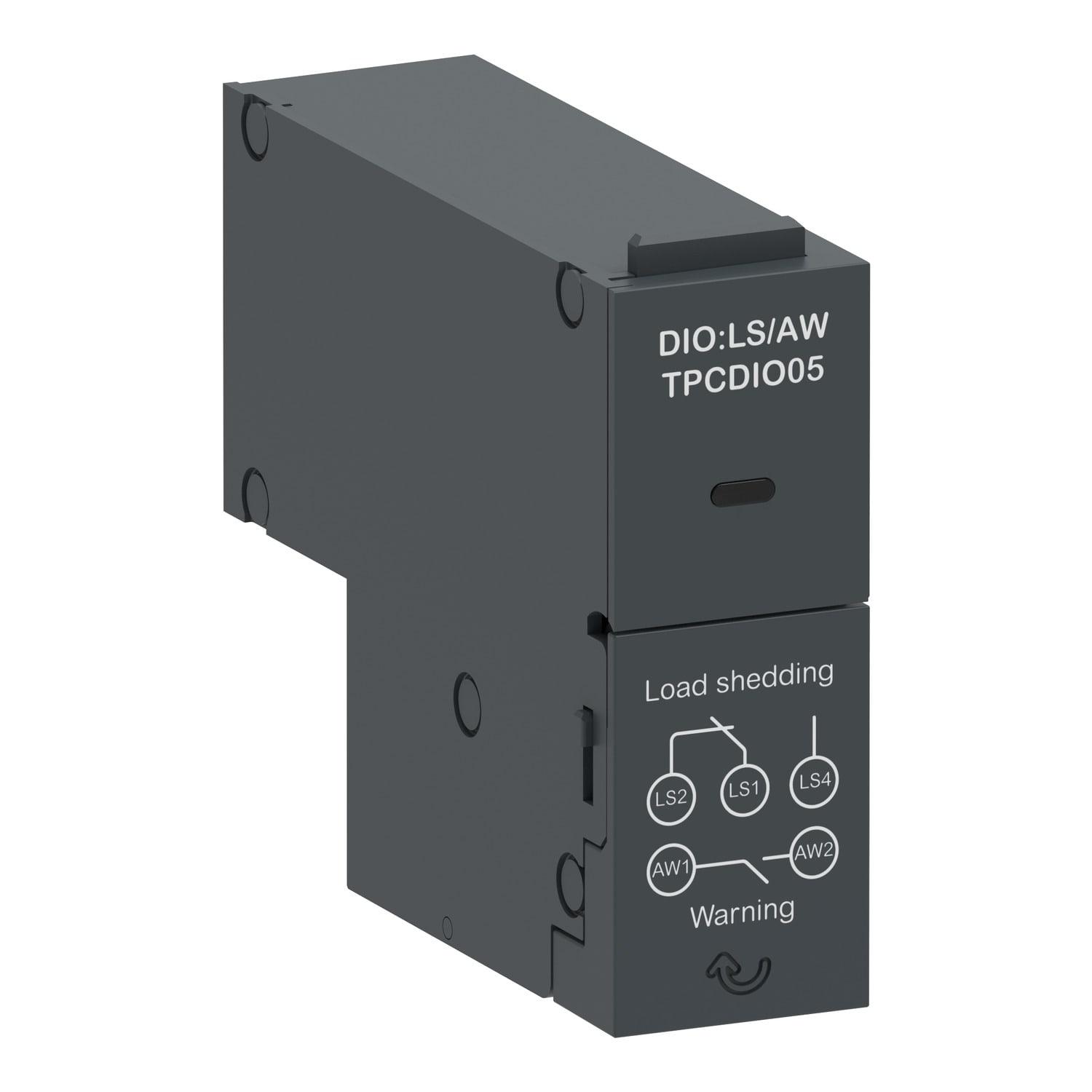

TPCDIO05 is output module as signalling accessory. This functional module is auxiliary contact for load shedding and status output. The rated operational current(Ie) is 5A @250VAC/30VDC. The load shedding signal can shed some non-critical loads when ATSEis on Alternate source. A “status” dry contact will activate the signal when transfer switch is not in auto or power is lost on two sources. The signal shall disappear when transfer switch returns to Auto or power is available.
