SCHNEIDER ELECTRIC - SNRC100S4WM NS1000NA P MOBILE 4P

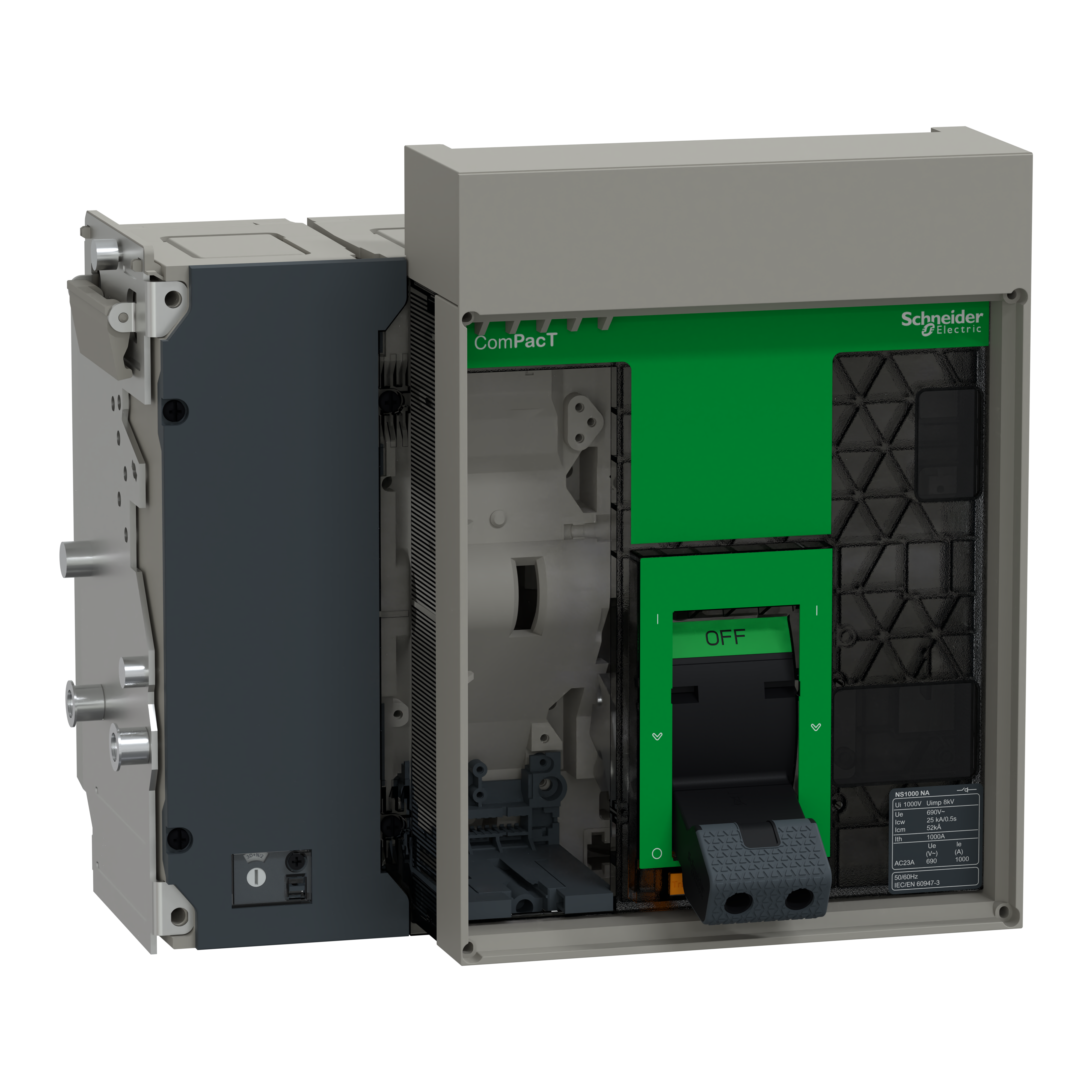

This switch disconnector is part of the new generation of ComPacT NS630bNA to NS1600NA range. ComPacT NS new generation keeps the same performances and comes with a new design and a new ergonomic toggle. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol. This ComPacT NS1000NA is a 4 poles switch disconnector used to control and isolate electrical distribution circuits. This device is a drawout version manually operated. This basic version does not include the chassis, the front and rear power connections. The operational voltage is 690VAC 50/60Hz. The operational current (Ie) is 1000A (AC23A), and the conventional thermal current (Ith) is 1000A at 60°C. This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 280mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-3 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.
