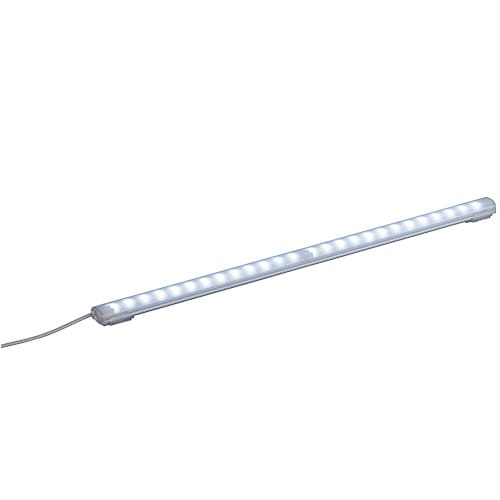

PATLITE EUROPE GMBH - PMHCLA6S-24A-CD-30 BARRA DI ILLUM A LED IP69K L600MM CAVO 3
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Lichtstrom - 690...690 lm
Farbtemperatur - 6800...6800 K
Länge - 624 mm
Nennspannung - 24...24 V
Lampenform - Röhre, einseitig gesockelt
Packung
1 ST
EAN
2000000370927
Artikelnummer
PMHCLA6S-24A-CD-30
Herstellernummer
CLA6S-24A-CD-30
Hersteller
PMH
Lichtstrom:
690...690 lm
Farbtemperatur:
6800...6800 K
Länge:
624 mm
Nennspannung:
24...24 V
Lampenform:
Röhre, einseitig gesockelt
Ausführung Glas/Abdeckung:
mattiert
Spannungsart:
DC
Farbe:
weiß
Durchmesser:
30 mm
Gehäusefarbe:
weiß
Schutzart (IP):
IP67
Nennstrom:
432...528 mA
The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well. Features and Conformity Standards, Length: 600mm, Tickness: 19.5mm, Daylight (6800K), 650lx(0.5m), 24VDC, 3m cable,Window: Difused, Body material: Polycarbonate, Cover material: Polycarbonate, Operating temp: -40 °C to +60 °C, IP66/67 (IEC 60529) /69K (DIN 40050 part9), Conforms to the CE /UKCA requirements, UL 2108, CSA-C22.2 No. 250.0, RoHS Directive (EN IEC 63000), EMC Directive (EN 55011, EN 61000-6-2)
