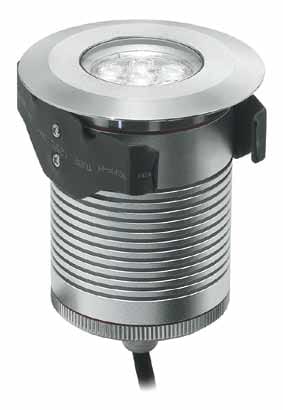

NOBILE ITALIA - NOBA17/4K INC.A PAVIMENTO 11W 4K 30 IP68 24V - A17/4K

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Leuchtmittel - LED nicht austauschbar

  • Mit Leuchtmittel - ja

  • Gehäusefarbe - Edelstahl

  • Werkstoff der Abdeckung - Glas transparent

  • Nennspannung - 24...24 V

Packung

  • 1 ST

Produktserien

Incassi LED a pavimento

Alle Produkte dieser Serie ansehen

EAN

8058052520146

Artikelnummer

NOBA17/4K

Herstellernummer

A17/4K

Hersteller

NOB

Leuchtmittel:

LED nicht austauschbar

Mit Leuchtmittel:

ja

Gehäusefarbe:

Edelstahl

Werkstoff der Abdeckung:

Glas transparent

Nennspannung:

24...24 V

Betriebsgerät:

elektronischer Trafo

Mit Betriebsgerät:

nein

Justierbar:

nein

Lichtverteilung:

symmetrisch

Schutzart (IP):

IP68

Schutzklasse nach IEC 61140:

III

Lichtfarbe:

weiß

Farbtemperatur:

4000...4000 K

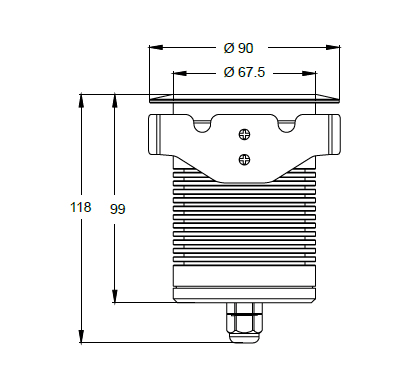

Außendurchmesser:

90 mm

Einbauhöhe/-tiefe:

118 mm

Max. Belastung:

2000 kg

Überrollbar:

ja

Elektrischer Anschluss mit Stecksystem:

ja

Incasso LED a pavimento carrabile (2000 Kg). Apparecchio da sommersione fino a 5m di profondità. LED CREE. Life time 50.000h (rendimento 70%). Corpo in alluminio. Anello esterno in acciaio AISI 316L resistente all’ossidazione. Diffusore in vetro temperato 8 mm di spessore. Guarnizioni O-RING in silicone. Cavo in neoprene H05RN-F 2x0,75mm2 di 3 m. Molle in acciaio rivestite in neoprene. Controcassa in policarbonato inclusa nella confezione. Alimentatore 24Vdc non incluso. Il collegamento di più apparecchiad un solo alimentatore va effettuato in parallelo (vedi pag.291).
