MERSEN ITALIA SPA - XESHP15M4R 1500VDC 4A 10X85MM GEN2 - HP15M4R

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Ausführung - sonstige

  • Größe - sonstige

  • Bemessungsstrom - 4 A

  • Bemessungsspannung DC - 1500 V

  • Spannungsart - DC

Packung

  • 5 ST

EAN

2000006931566

Artikelnummer

XESHP15M4R

Herstellernummer

HP15M4R

Hersteller

XES

Ausführung:

sonstige

Größe:

sonstige

Bemessungsstrom:

4 A

Bemessungsspannung DC:

1500 V

Spannungsart:

DC

Betriebsklasse nach IEC 60269:

gPV (Ganzbereichs-Photovoltaikschutz)

Bemessungsbetriebsfrequenz:

50...60 Hz

Auslösecharakteristik:

sonstige

Abschaltleistung bei Nennspannung, AC:

50 kA

Leistungsverlust bei Bemessungsstrom:

1.85 W

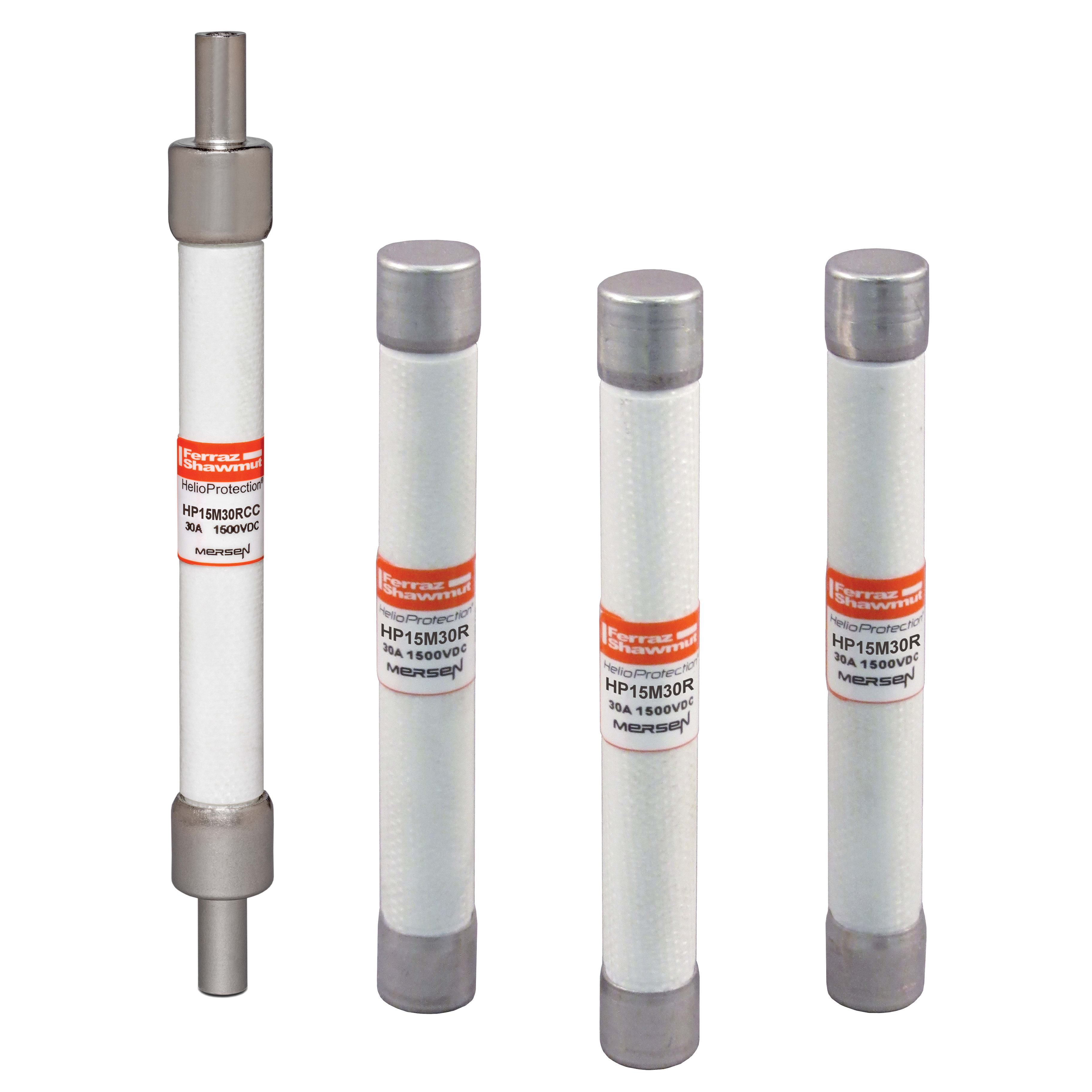

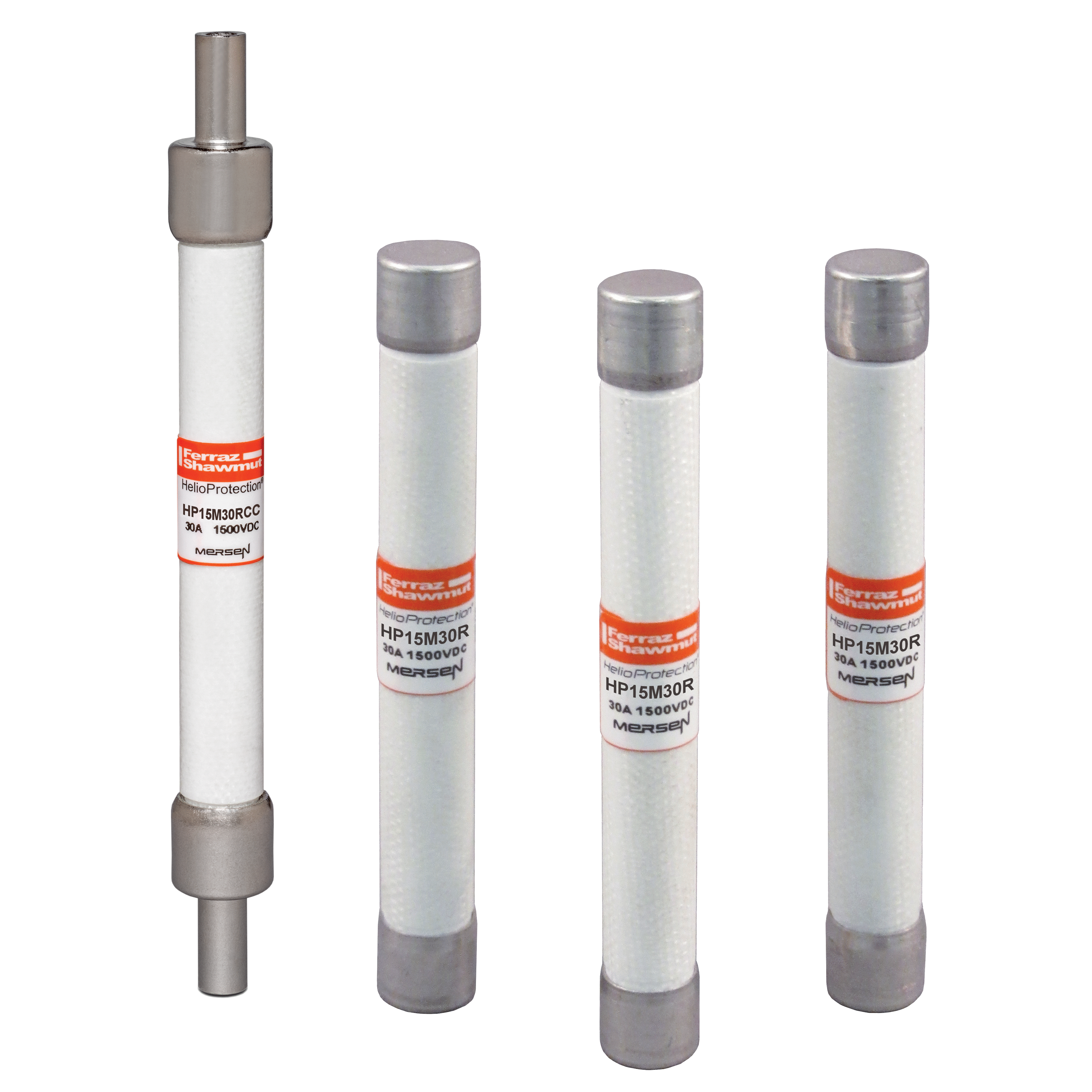

Mersen’s GEN2 of the HP15M photovoltaic (PV) fuse series is designed specifically to meet the severe temperature and current cycling of a PV system. Subjected to stringent cycle testing, the GEN2 provides enhanced reliability. These 1500VDC rated fuses are designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, which allows for safe circuit interruption under typical low fault current conditions. In addition to the standard ferrule terminal, parts are also available with Crimp Cap terminals for in-line fuse applications. The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring. Protect your off-grid or grid tied PV system from unexpectedline faults using Mersen’s HelioProtection® fuse line.
