LINEA LIGHT (ILED) - ILD96819W90 COB20-R 8 D227 40WDC IP20 CRI80 BG - 96819W90

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Leuchtmittel - LED nicht austauschbar

  • Mit Leuchtmittel - ja

  • Werkstoff des Gehäuses - Kunststoff

  • Gehäusefarbe - weiß

  • Nennspannung - 220...240 V

Packung

  • 1 ST

Leuchtmittel:

LED nicht austauschbar

Mit Leuchtmittel:

ja

Werkstoff des Gehäuses:

Kunststoff

Gehäusefarbe:

weiß

Nennspannung:

220...240 V

Betriebsgerät:

elektronischer Trafo

Mit Betriebsgerät:

nein

Reflektor:

hochglänzend

Lichtverteilung:

symmetrisch

Lichtaustritt:

direkt

Schlagfestigkeit:

IK05

Schutzklasse nach IEC 61140:

III

Geeignet für Lampenleistung:

40...40 W

Lichtfarbe:

weiß

Farbtemperatur:

3000...3000 K

Bemessungslichtstrom nach IEC 62722-2-1:

4600...0 lm

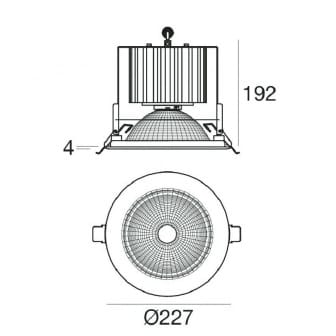

Außendurchmesser:

227 mm

Einbauhöhe:

192...0 mm

Bildschirmarbeitsplatztauglich nach EN 12464-1:

nein

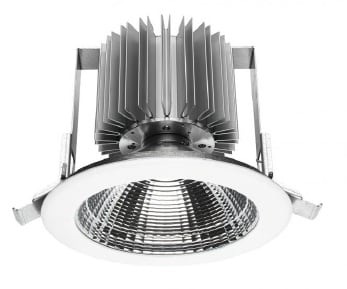

Downlight a singola emissione per applicazione indoor. La sorgente luminosa LED, di colore bianco caldo, con distribuzione luminosa 90°, è composta da 1 LED arrayled, con una CCT 3000 K ed un CRI 80; il flusso luminoso della sorgente è di 4600 lm, con un'efficienza nominale di 115.0 lm/W. Il corpo dell'apparecchio, realizzato in policarbonato, presenta una finitura di colore bianco ral 9003, ottenuta tramite verniciatura. Il grado di protezione è IP20; il peso complessivo è di kg. Il driver d’alimentazione non è fornito e deve essere ordinato separatamente. La potenza assorbita dall'apparecchio è di 40 W. Il cavo per l'alimentazione è incluso e presenta una lunghezza di 0.30 m. L'apparecchio presenta una classe di isolamento III ed è installabile a soffitto, con foro tondo di diametro 210 mm (nel cartongesso).Colore: bianco.
