LINEA LIGHT (ILED) - ILD80587W60 ORMA-I 6 1LED 5W 24VDC+DL INOX

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Schutzart (IP) - IP68

  • Farbtemperatur - 3000...3000 K

  • Bemessungslichtstrom nach IEC 62722-2-1 - 490 lm

  • Leuchtmittel - LED nicht austauschbar

  • Nennspannung - 24...24 V

Packung

  • 1 ST

EAN

8033913065837

Artikelnummer

ILD80587W60

Herstellernummer

80587W60

Hersteller

LIA

Schutzart (IP):

IP68

Farbtemperatur:

3000...3000 K

Bemessungslichtstrom nach IEC 62722-2-1:

490 lm

Leuchtmittel:

LED nicht austauschbar

Nennspannung:

24...24 V

Gehäusefarbe:

Edelstahl

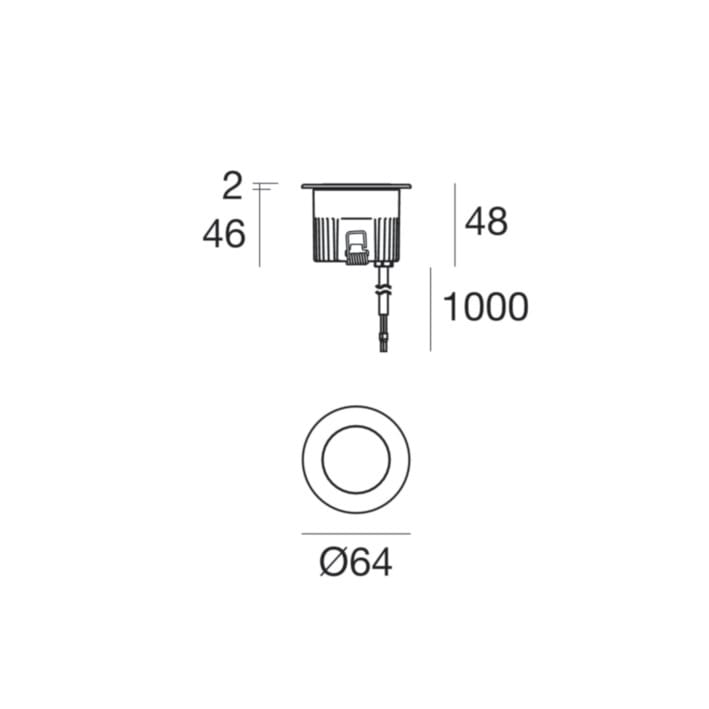

Einbauhöhe/-tiefe:

46 mm

Mit Leuchtmittel:

ja

Justierbar:

nein

Spannungsart:

DC

Lichtverteilung:

symmetrisch

Ausstrahlungswinkel:

breitstrahlend 41-80°

Außendurchmesser:

64 mm

Mit Betriebsgerät:

nein

Geeignet für Lampenleistung:

4...4 W

Werkstoff der Abdeckung:

Glas transparent

Lichtfarbe:

weiß

Betriebsgerät:

elektronischer Trafo

Überrollbar:

nein

Schutzklasse:

III

Höhe/Tiefe:

2 mm

Max. Belastung:

2000 kg

Ohne Dimmfunktion:

ja

Nennstrom:

350...350 mA

Farbwiedergabeindex CRI:

80-89

Elektrischer Anschluss mit Stecksystem:

nein

Uplights a singola emissione per applicazione outdoor. La sorgente luminosa LED, di colore bianco caldo, con distribuzione luminosa Flood, è composta da 1 LED powerled, con una CCT 3000 K ed un CRI 80; il flusso luminoso della sorgente è di 490 lm, con un'efficienza nominale di 122.5 lm/W. Il corpo dell'apparecchio, realizzato in alluminio pressofuso en ab - 46100, presenta una finitura di colore nero ral 9005 opaco, ottenuta tramite anodizzazione poro aperto + verniciatura a polvere; il diffusore è prodotto in vetro extra chiaro - temprato. Il grado di protezione è IP68; il peso complessivo è di 0.2 kg. Il driver d’alimentazione non è fornito e deve essere ordinato separatamente. La potenza assorbita dall'apparecchio è di 4 W. Il cavo per l'alimentazione è incluso e presenta.
