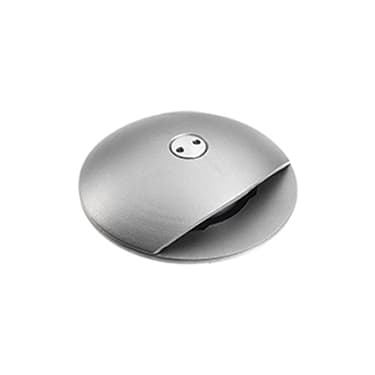

L&L LUCE E LIGHT - L&LRD21009SI ROND 2.1 2W 24VDC 4000K 10 MICROSAB - RD21009SI

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Leuchtmittel - LED nicht austauschbar

  • Mit Leuchtmittel - ja

  • Geeignet für Anzahl der Lichtquellen - 1

  • Gehäusefarbe - sonstige

  • Werkstoff der Abdeckung - Kunststoff transparent

Packung

  • 1 ST

EAN

7449079362887

Artikelnummer

L&LRD21009SI

Herstellernummer

RD21009SI

Hersteller

L&L

Leuchtmittel:

LED nicht austauschbar

Mit Leuchtmittel:

ja

Geeignet für Anzahl der Lichtquellen:

1

Gehäusefarbe:

sonstige

Werkstoff der Abdeckung:

Kunststoff transparent

Nennspannung:

24...24 V

Betriebsgerät:

elektronischer Trafo

Mit Betriebsgerät:

nein

Justierbar:

nein

Lichtverteilung:

symmetrisch

Schutzart (IP):

IP67

Schutzklasse nach IEC 61140:

III

Lichtfarbe:

weiß

Farbtemperatur:

4000...4000 K

Farbwiedergabeindex CRI:

80-89

Höhe/Tiefe:

26 mm

Außendurchmesser:

100 mm

Einbauhöhe/-tiefe:

22 mm

Max. Belastung:

2000 kg

Überrollbar:

ja

Elektrischer Anschluss mit Stecksystem:

ja

Incasso da esterno monoemissione; carrabile fino a 2000 kg; a incasso (pavimento); corpo in acciaio inox AISI 316L, schermo in policarbonato; finiture: microsabbiato; 1 power LED; 2W - 24Vdc; alimentatore integrato; incluso cavo in neoprene di 1,5 m H05RN-F 2x0,35/0,75 Ø6,3 mm; ottiche: 10°; colore LED: bianco - 4000K; grado di protezione: IP67; grado di resistenza: IK08; dotato di sistema IPS; temperatura di esercizio: -10°C +45°C; temperatura schermo: max 40°C (Ta 25°C); sicurezza fotobiologica: gruppo rischio 1 secondo EN62471:2006; classe di isolamento III; peso 0,60 kg; dimensioni ø100x48 mm; dimmerazione disponibile mediante dimmer in linea 24Vdc; accessori: cassaforma WC0100, cassaforma WC0103, chiave per vite antivandalo WE0100.
