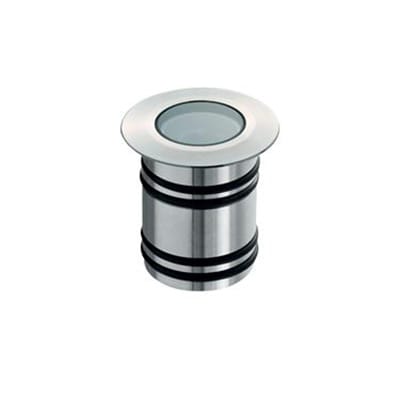

L&L LUCE E LIGHT - L&LCW10125LAI BRIGHT1.0 316L 2W 500MA 3000K 43 INOX - CW10125LAI

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Leuchtmittel - LED nicht austauschbar

  • Mit Leuchtmittel - ja

  • Geeignet für Anzahl der Lichtquellen - 1

  • Gehäusefarbe - Edelstahl

  • Werkstoff der Abdeckung - Glas transparent

Packung

  • 1 ST

EAN

7449077144737

Artikelnummer

L&LCW10125LAI

Herstellernummer

CW10125LAI

Hersteller

L&L

Leuchtmittel:

LED nicht austauschbar

Mit Leuchtmittel:

ja

Geeignet für Anzahl der Lichtquellen:

1

Gehäusefarbe:

Edelstahl

Werkstoff der Abdeckung:

Glas transparent

Nennspannung:

220...240 V

Betriebsgerät:

elektronischer Trafo

Mit Betriebsgerät:

nein

Justierbar:

nein

Lichtverteilung:

symmetrisch

Schutzart (IP):

IP68

Schutzklasse nach IEC 61140:

III

Bemessungslichtstrom nach IEC 62722-2-1:

88...0 lm

Lichtfarbe:

weiß

Farbtemperatur:

3000...3000 K

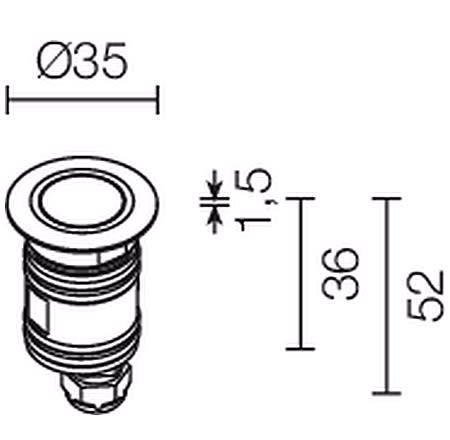

Höhe/Tiefe:

1.5 mm

Außendurchmesser:

35 mm

Einbauhöhe/-tiefe:

52 mm

Einbaudurchmesser:

75 mm

Max. Belastung:

500 kg

Überrollbar:

nein

Elektrischer Anschluss mit Stecksystem:

ja

Apparecchio a incasso da esterno o immersione; calpestabile; 2W - 350/500mA; 1 power LED; 3000K, ottiche: 40°, flusso totale: 88 lm (3000K a 500mA); corpo in Acciaio Inox AISI 316L, ghiera in Acciaio Inox AISI 316L, schermo in vetro extrachiaro temprato con trattamento antigraffio di spessore 6mm, protezione alla sorgente luminosa in vetro borosilicato, guarnizioni siliconiche; finitura: Acciaio Inox lucidato; temperatura di esercizio: -10°C +45°C; temperatura vetro: max 40°C (Ta 25°C); dotato di sistemaIPS; grado di protezione contro i liquidi e i corpi solidi: IP68; grado di resistenza all'impatto IK08; Glow Wire Test: 960°; sicurezza fotobiologica: gruppo rischio 1 secondo EN62471:2006; montaggio con cassaforma WC5003; classe di isolamento III; peso 0,50kg; dimensioni Ø35x52mm; collegamento in serie, con cavo 5m tipo H05RN-F 2x0,75; dimmerazione disponibile mediante alimentatore dimmerabile.
