L&L LUCE E LIGHT - L&LCD10130LAF BEAM1.0 3W 700MA 5000K 44 GRI

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Schutzart (IP) - IP67

  • Farbtemperatur - 5000...5000 K

  • Einbaudurchmesser - 45 mm

  • Leuchtmittel - LED nicht austauschbar

  • Nennspannung - 220...240 V

Packung

  • 1 ST

EAN

7449070325096

Artikelnummer

L&LCD10130LAF

Herstellernummer

CD10130LAF

Hersteller

L&L

Schutzart (IP):

IP67

Farbtemperatur:

5000...5000 K

Einbaudurchmesser:

45 mm

Leuchtmittel:

LED nicht austauschbar

Nennspannung:

220...240 V

Gehäusefarbe:

grau

Einbauhöhe/-tiefe:

53 mm

Mit Leuchtmittel:

ja

Justierbar:

nein

Lichtverteilung:

symmetrisch

Ausstrahlungswinkel:

breitstrahlend 41-80°

Außendurchmesser:

60 mm

Mit Betriebsgerät:

nein

Werkstoff der Abdeckung:

Glas transparent

Lichtfarbe:

weiß

Betriebsgerät:

EVG

Überrollbar:

nein

Schutzklasse:

III

Nennstrom:

700...700 mA

Farbwiedergabeindex CRI:

80-89

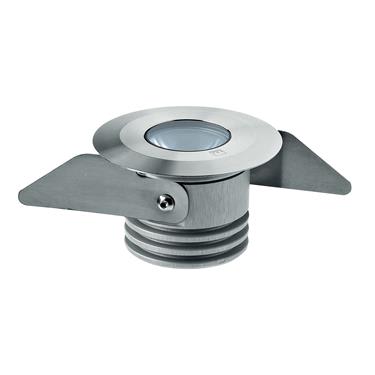

Beam 1.0 - Incasso uplight da esterno; a incasso (soffitto, parete, pavimento); corpo in alluminio anodizzato, ghiera in alluminio, schermo in vetro extrachiaro trasparente; finiture: grigio RAL 9006; 1 power LED: 3 LED; max 3W - max 700mA; incluso cavo in neoprene di 1,5 m H05RN-F 2x0,35/0,75 Ø6,3 mm; collegamento in serie; ottica: 44°; colore LED: bianco - 5000K; grado di protezione: IP67; grado di resistenza: IK06; dotato di sistema IPS; temperatura di esercizio: -20°C+45°C; temperatura schermo: max 40°C (Ta 25°C); Glow Wire Test: 960°; sicurezza fotobiologica: gruppo rischio 1 secondo EN62471:2006; classe di isolamento III; peso 0,20 kg; dimensioni corpo Ø60x53 mm; foro d’incasso Ø45 mm; volume tecnico per dissipazione: Ø80x100 mm; dimmerazione disponibile mediante alimentatore dimmerabile; accessori: cassaforma WC1500, cassaforma WC1501. LED bianco 3W 5000K 700mA 44°.
