L&L LUCE E LIGHT - L&LCB10125VAI BRIGHT1.0 2W 500MA 3000K 21 SH INOX

KopierenKopieren

Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen

Haupteigenschaften

  • Schutzart (IP) - IP68

  • Farbtemperatur - 3000...3000 K

  • Bemessungslichtstrom nach IEC 62722-2-1 - 88 lm

  • Einbaudurchmesser - 30 mm

  • Leuchtmittel - LED nicht austauschbar

Packung

  • 1 ST

EAN

8013768817232

Artikelnummer

L&LCB10125VAI

Herstellernummer

CB10125VAI

Hersteller

L&L

Schutzart (IP):

IP68

Farbtemperatur:

3000...3000 K

Bemessungslichtstrom nach IEC 62722-2-1:

88 lm

Einbaudurchmesser:

30 mm

Leuchtmittel:

LED nicht austauschbar

Nennspannung:

220...240 V

Gehäusefarbe:

Edelstahl

Einbauhöhe/-tiefe:

52 mm

Mit Leuchtmittel:

ja

Justierbar:

nein

Lichtverteilung:

symmetrisch

Ausstrahlungswinkel:

engstrahlend 11 - 20°

Außendurchmesser:

35 mm

Mit Betriebsgerät:

nein

Werkstoff der Abdeckung:

Glas transparent

Lichtfarbe:

weiß

Betriebsgerät:

EVG

Überrollbar:

nein

Schutzklasse:

III

Nennstrom:

500...500 mA

Farbwiedergabeindex CRI:

80-89

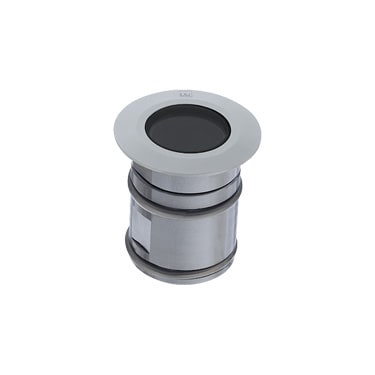

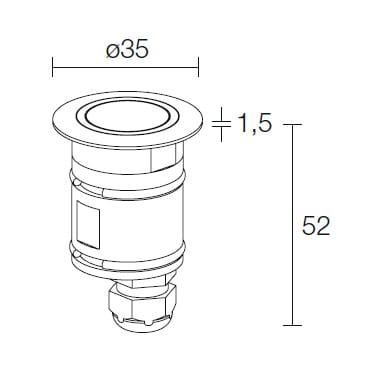

Bright 1.0 - Incasso uplight da esterno (non adatto per immersione); a incasso (soffitto, parete, pavimento); corpo e ghiera in acciaio inox AISI 316L, schermo in vetro trasparente temprato, schermo in vetro acidato temprato (ottica diffusa); 1 power LED; max 2W - max 500mA; incluso cavo in neoprene di 1,5 m H05RN-F 2x0,35/0,75 Ø6,3 mm; collegamento in serie; ottiche: 19°, colore LED: bianco 3000K; grado di protezione: IP68; grado di resistenza: IK10; dotato di sistema IPS; temperatura di esercizio: -20°C +45°C; temperatura schermo: max 40°C (Ta 25°C); Glow Wire Test: 960°; sicurezza fotobiologica: gruppo rischio 1 secondo EN62471:2006; classe di isolamento III; peso 0,20 kg; dimmerazione disponibile mediante alimentatore dimmerabile; accessori: cassaforma WC0201, cassaforma WC0202, molla di fissaggio WG0301 per installazione su cartongesso, nido d’ape WH0101. LED bianco 2W 500mA 3000K 88lm 19°. Ø35x52 mm.
