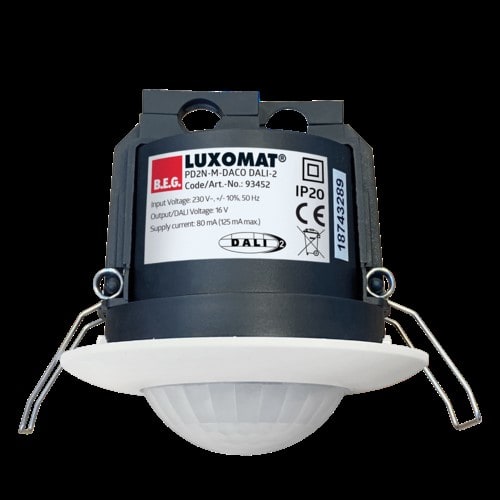

B.E.G. ITALIA SRL - BBH93452 PD2N-M-DACO DALI-2 - 93452

Occupancy detector with integrated DALI application controller for energy-efficient lighting control DALI-2 certified product Integrated DALI power supply DALI interface for controlling digital, dimmable ECGs in broadcast mode Manual switching or dimming via conventional pushbuttons Bidirectional IR communication enables fast integration into the project management function of the B.E.G. One app Complete range of functions can only be activated using the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS). Semi-automatic, full automatic, presence-independent or light-independent mode adjustable Adjustable regulation dynamics (minimum and maximum values) Adjustable speed and delay of the regulation Single master version, not networkable Detection area can be extended by using slave devices Mixed light measurement with internal and external light sensor DALI output power can be increased with accessories Integrated daylight harvesting circuit (or switch output) Adjustable switch-on value Last value - Reminder function for switch-on value Adjustable brightness set value and reflection factor Indication of the current light sensor value in the B.E.G. One App Self-check and display of device errors in the B.E.G. One App Status LEDs can be activated / deactivated PIN code Corridor function - Deactivates the possibility to switch off the light via the push-button Number of DALI participants can be determined quickly and reliably via the B.E.G. Online DALI Line Planner Software is backwards compatible with the first generation (except DSI, double lock and corridor function) Factory setting 10 min follow-up time and 500 lux brightness set value Including pre-assembled spring clamp with strain relief and contact protection cap for recessed ceiling mounting Accessory for surface mounting available Application examples: small offices, open-plan offices
