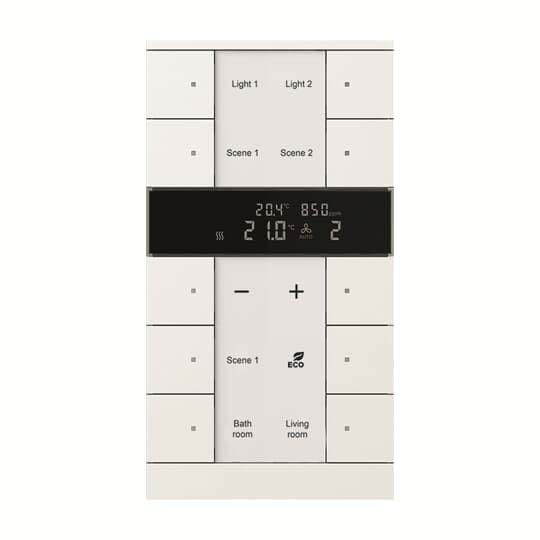

ABB SPA - ABB2CKA006330A0066 SBC/U10.0.1-884 TERM.MAST 10P+CO2+UM,B O - 2CKA006330A0066
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Bussystem KNX - ja
Bussystem KNX-RF (Funk) - nein
Bussystem Funkbus - nein
Bussystem LON - nein
Bussystem Powernet - nein
Packung
1 ST
EAN
4011395299005
Artikelnummer
ABB2CKA006330A0066
Herstellernummer
2CKA006330A0066
Hersteller
ABB
Bussystem KNX:
ja
Bussystem KNX-RF (Funk):
nein
Bussystem Funkbus:
nein
Bussystem LON:
nein
Bussystem Powernet:
nein
Andere Bussysteme:
ohne
Montageart:
Unterputz
Mit Busankopplung:
ja
Farbe:
weiß
Anzahl der digitalen Eingänge:
0
Schutzart (IP):
IP20
Control element with room temperature controller function and CO2/moisture sensor. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. For activating heating, ventilation and fan coil actuators. Master/slave configuration. With base-load operation. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 2
