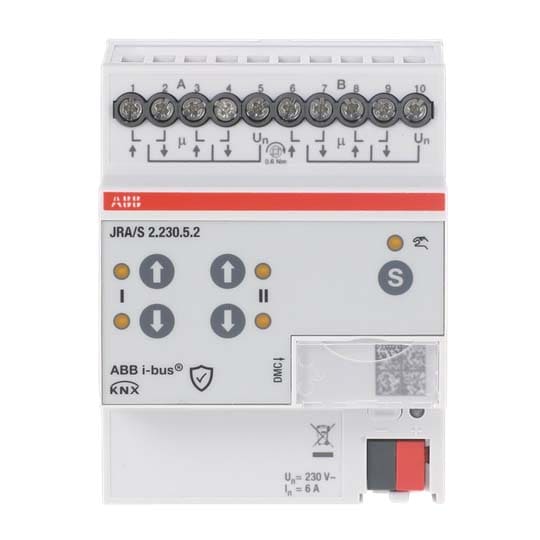

ABB SPA - ABB2CDG110288R0011 JRA/S 2.230.5.2 ATT.TAPP, 2C, 230V AC - 2CDG110288R0011
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Bussystem KNX - ja
Montageart - REG
Andere Bussysteme - ohne
Max. Schaltleistung - 1380 W
Bussystem Funkbus - nein
Packung
1 ST
EAN
4053546110937
Artikelnummer
ABB2CDG110288R0011
Herstellernummer
2CDG110288R0011
Hersteller
ABB
Bussystem KNX:
ja
Montageart:
REG
Andere Bussysteme:
ohne
Max. Schaltleistung:
1380 W
Bussystem Funkbus:
nein
Bussystem KNX-RF (Funk):
nein
Bussystem LON:
nein
Bussystem Powernet:
nein
Breite in Teilungseinheiten:
4
Mit Busankopplung:
ja
Busmodul abnehmbar:
nein
Mit LED-Anzeige:
ja
Stromart:
AC
Schutzart (IP):
IP20
Min. Tiefe der Gerätedose:
64.5 mm
For the control of independent 230 V AC motors via ABB i-bus? KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the motor are detected automatically via current detection. To protect the motor, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected.
